| Frame |

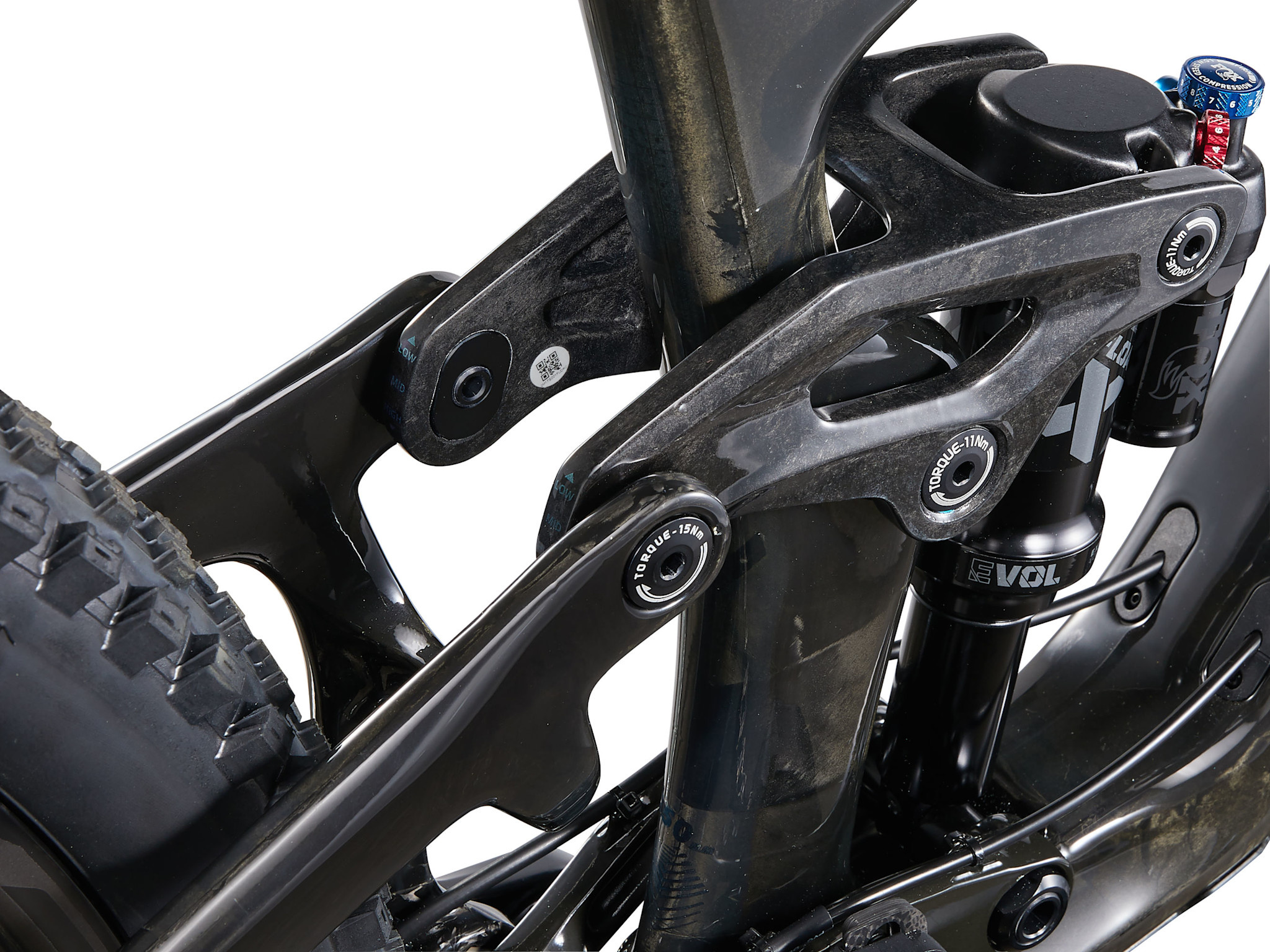

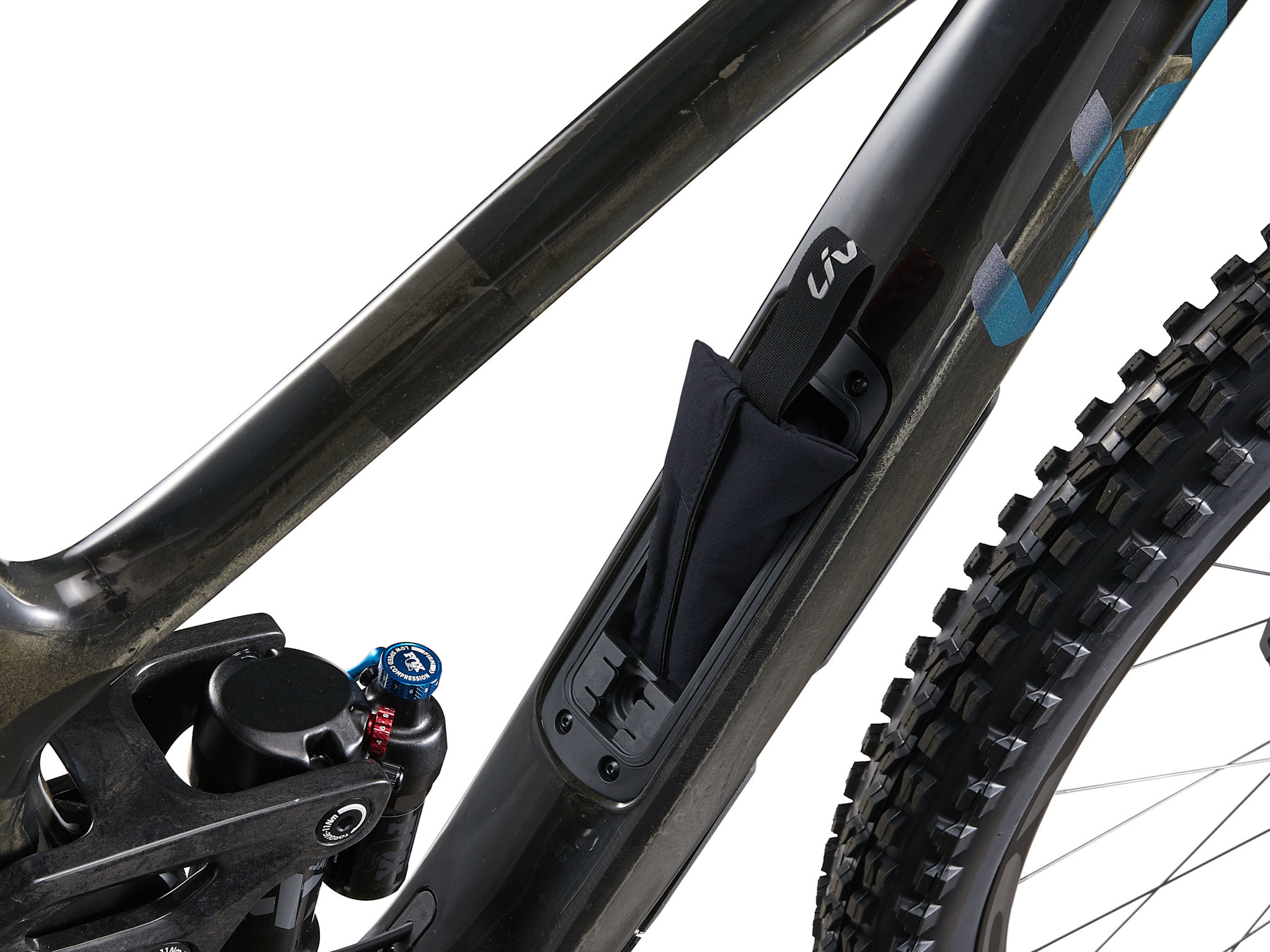

Advanced-grade composite front and rear triangles, 150mm Maestro Suspension, flip chip – Maestro 3, integrated down tube storage |
| Fork |
Fox 36 Performance Elite, 160mm, Grip 2 damper, Boost 15x110 Kabolt, tapered, 44mm offset |
| Rear Shock |

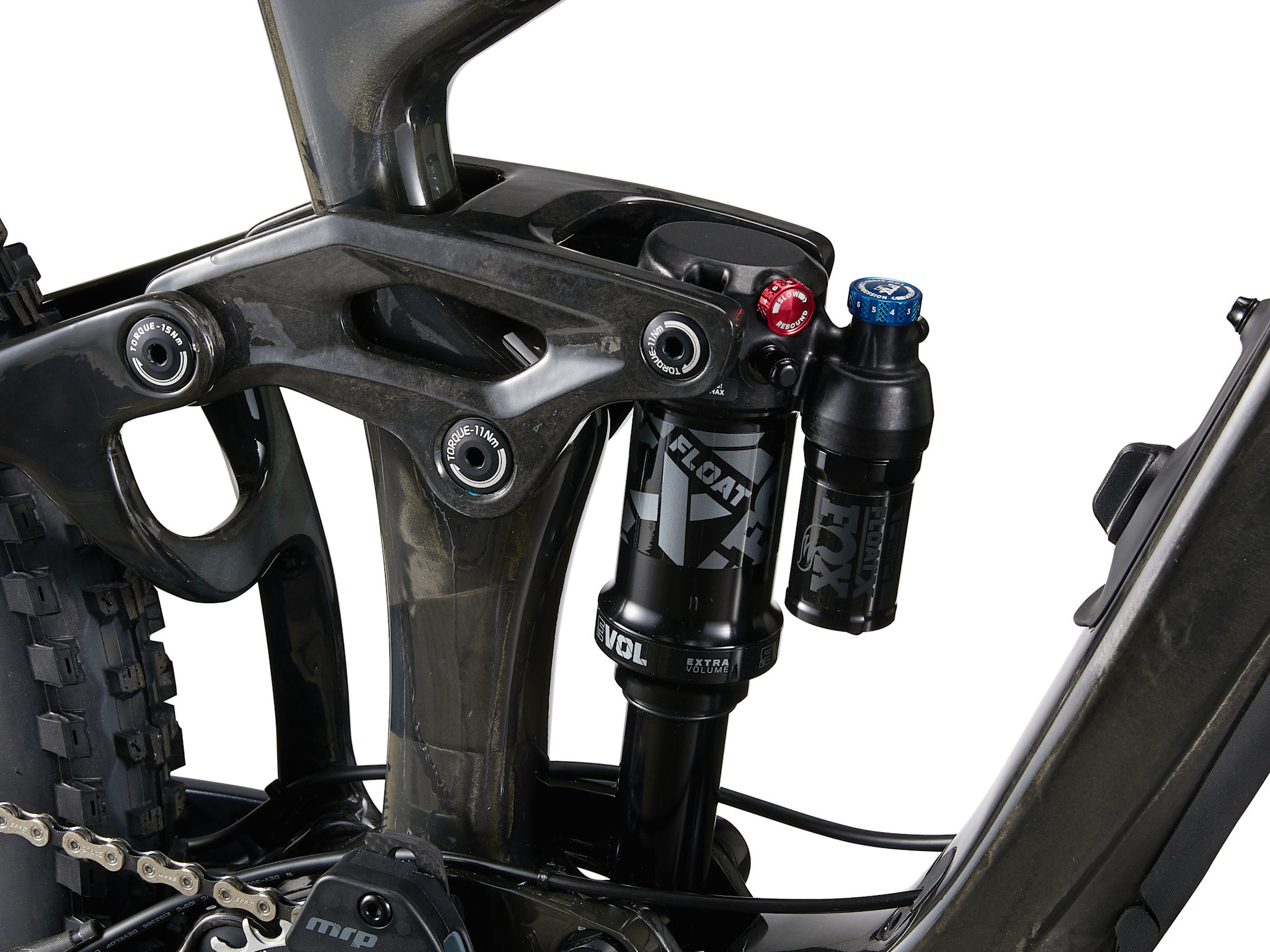

Fox Float X Performance Elite 185x55, custom tuned for Liv |
| Rims |
Giant TRX 2 Carbon WheelSystem, 30mm inner width XS/S: [F] 29, [R] 27.5 M/L: [F] 29, [R] 29 |
| Hubs |
[F] Giant MTB alloy, 6-bolt, [R] Giant MTB alloy, 3-pawl driver, 6-bolt |
| Spokes |
Sapim |
| Tires |
Size XS, S, M and L, [F]: Maxxis Minion DHF 29x2.5WT, 3C Max Terra, EXO, TR, tubeless Size XS and S, [R]: Maxxis Dissector 27.5x2.4WT, 3C Max Terra, EXO, TR, tubeless Size M and L, [R]: Maxxis Dissector 29x2.4WT, 3C Max Terra, EXO, TR, tubeless |
| Bottom Bracket |
SRAM DUB, press fit |
| Crankset |
SRAM GX T-Type, 30t, 55mm chainline XS: 165mm, S: 170mm, M: 170mm, L: 170mm |
| Shifters |
SRAM AXS, 1x12 |
| Rear Derailleur |
SRAM GX T-Type |
| Cassette/Freewheel |
SRAM GX T-Type, 10x52 |
| Chain |
SRAM GX T-Type |
| Brakes |
Shimano XT BR-M8120, hydraulic, Shimano RT-66 rotors [F]203mm, [R]180mm |
| Brake Levers |
Shimano XT BL-M8100 |
| Handlebars |
Giant Contact SL TR35, 20mm rise, 35mm XS: 760mm, S: 760mm, M: 760mm, L: 780mm |
| Tape/Grips |
Liv Tactal Pro Single Lock-On XS/S: 120mm, M/L: 130mm |
| Stem |
Giant Contact SL, 35mm XS: 40mm, S: 50mm, M: 50mm, L: 50mm |
| Seatpost |
TranzX travel-adjustable dropper, remote XS: 125mm travel/ 30.9 x 390mm S: 120-150mm travel / 30.9 x 390mm M: 150mm travel / 30.9 x 440mm L: 150mm travel / 30.9 x 440mm |
| Saddle |
Liv Sylvia |
