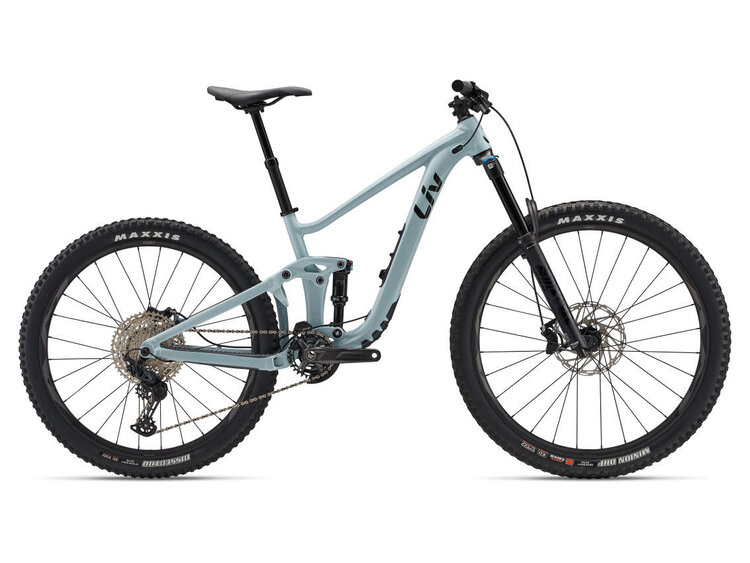

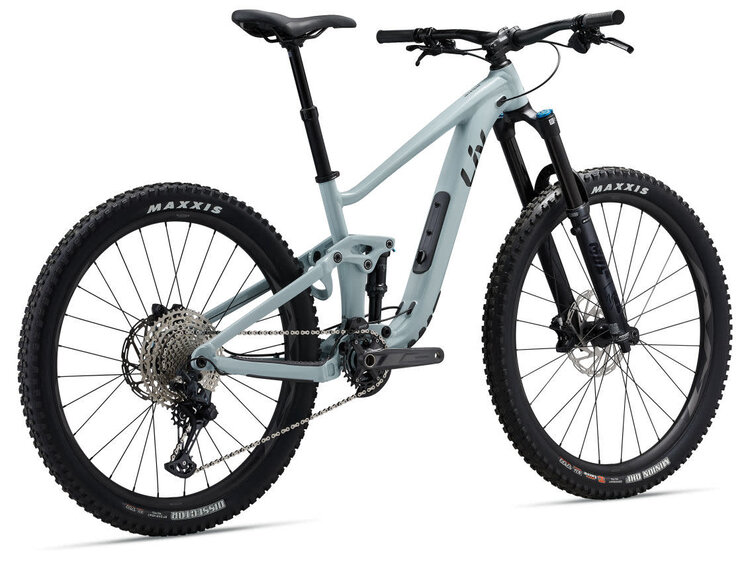

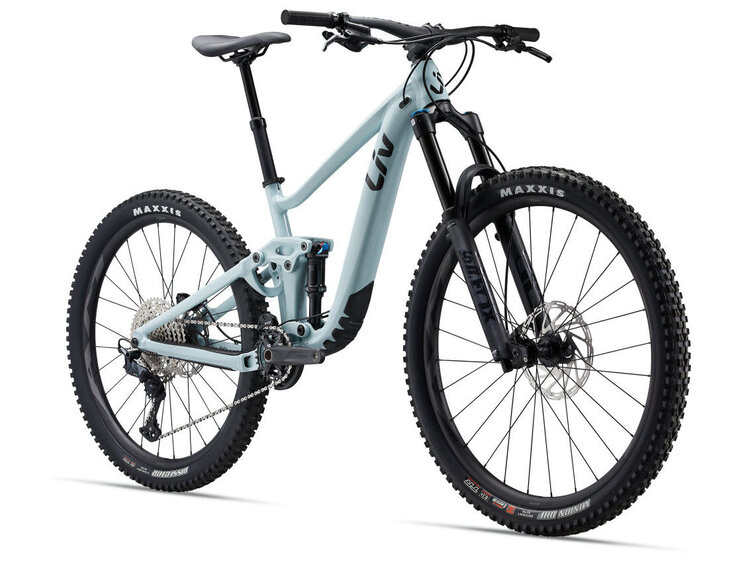

INTRIGUE LT 1 | SOAP SUDS

Performance Long Travel Trail

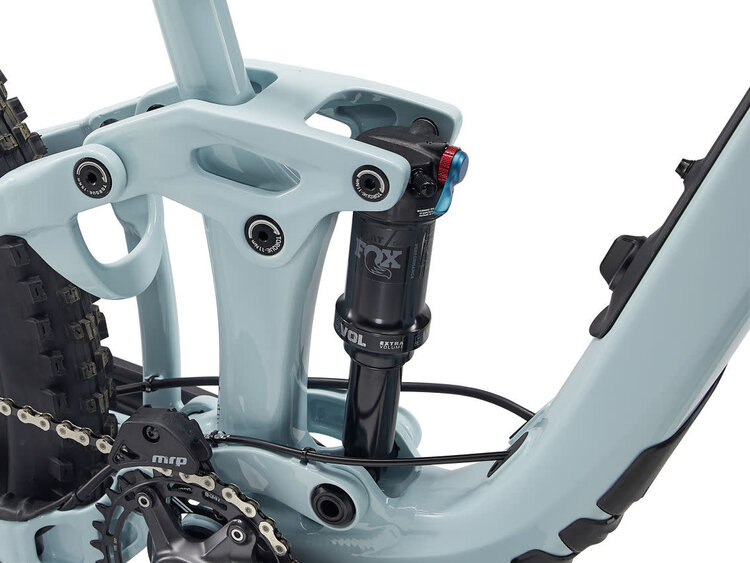

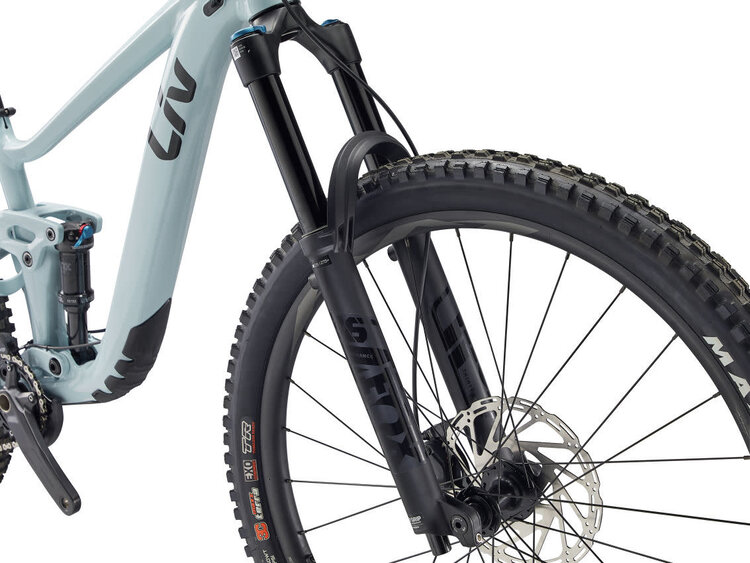

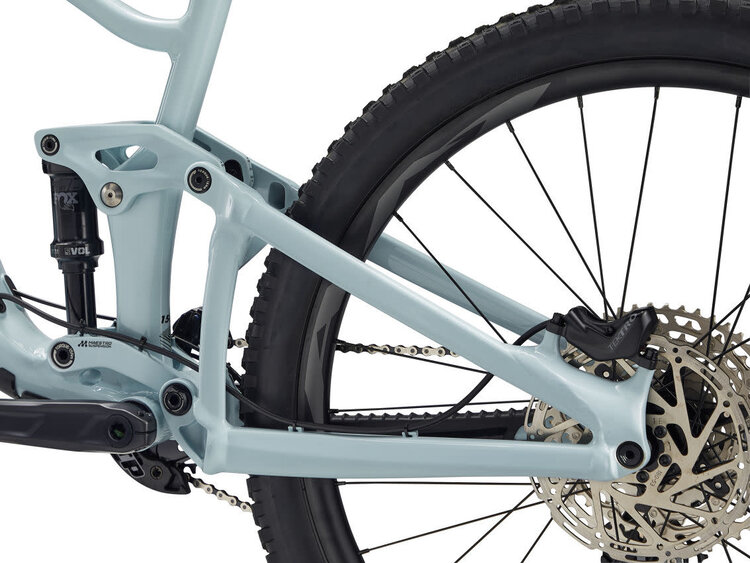

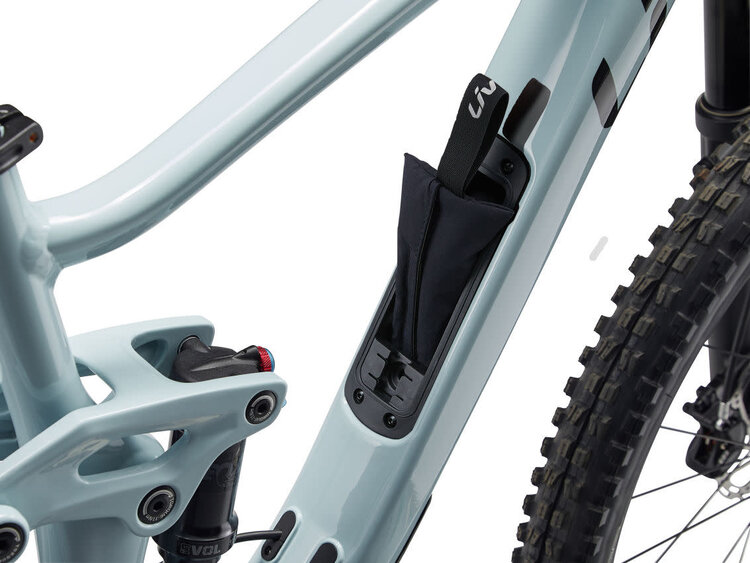

Lightweight ALUXX SL-Grade Aluminum frameset with integrated down tube storage features a slacker head tube angle for confidence on technical terrain and a longer reach to keep you centered and in control in the corners. The 150mm of Maestro rear wheel suspension has been custom tuned by women who shred, for women who shred. And paired with 160mm of front suspension, you’ve got a bike that is equal parts agile and burly.

Adjustable Frame Geometry

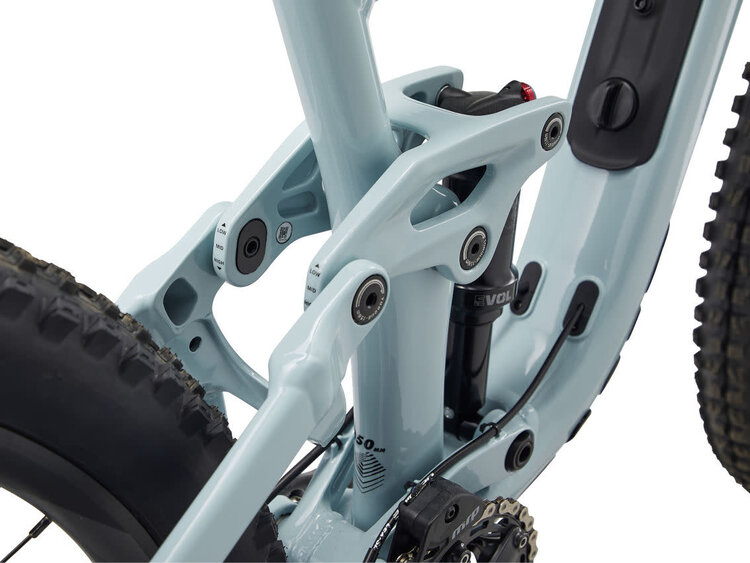

Equipped with the new flip chip Maestro 3, you can easily change the head tube and seat tube angles, bottom bracket height and rear wheel size* to fine-tune handling for varying trail conditions and your personal riding style. *Sizes M and L only

Best of Both Wheels
Frame sizes XS and S are solely designed for a MX configuration – 29-inch wheel up front and 27.5-inch wheel in the rear. This set up optimizes rear wheel travel, provides a playful and nimble rear end and a fast rolling, stable front end. Frame sizes M and L come equipped with 29-inch wheels up front and in the rear with the ability to run a 27.5-inch wheel in the rear. This provides two unique riding characteristics – fast and comfortable or quick and nimble – allowing you to customize your set up for how and where you ride. *27.5-inch wheel sold separately for frame sizes M and L

Specs

		XS	S	M	L
		LOW | MID | HIGH	LOW | MID | HIGH	LOW | MID | HIGH	LOW | MID | HIGH
A	SEAT TUBE LENGTH (mm)	370	390	420	450
B	SEAT TUBE ANGLE	76.2° | 76.6° | 77.0°	76.2° | 76.6° | 77.0°	77.3° | 77.6° | 78.0°	77.3° | 77.6° | 78.0°
C	TOP TUBE LENGTH (mm)	552 | 552 | 550	567 | 566 | 565	581 | 580 | 579	603 | 602 | 601
D	HEAD TUBE LENGTH (mm)	95	95	100	110
E	HEAD TUBE ANGLE	64.7° | 65.1° | 65.5°	64.6° | 65.1° | 65.5°	64.8° | 65.1° | 65.5°	64.8° | 65.1° | 65.5°
F	FORK RAKE (mm)	44	44	44	44
G	TRAIL (mm)	131 | 127.9 | 124.8	131.6 | 127.8 | 124.8	130.6 | 127.7 | 124.8	130.5 | 127.7 | 124.8
H	WHEELBASE (mm)	1166 | 1166 | 1164	1183 | 1180 | 1179	1208 | 1207 | 1207	1232 | 1231 | 1231
I	CHAIN STAY LENGTH (mm)	443 | 442 | 440	443 | 442 | 440	443 | 442 | 440	443 | 442 | 440
J	BOTTOM BRACKET DROP (mm)	25 | 20 | 15	24 | 20 | 15	35 | 30 | 25	35 | 30 | 25
K	STACK (mm)	629 | 627 | 624	628 | 627 | 624	628 | 625 | 622	637 | 634 | 631
L	REACH (mm)	398 | 402 | 406	413 | 417 | 421	439 | 442 | 447	459 | 462 | 467
M	STAND OVER HEIGHT (mm)	613 | 613 | 613	674 | 674 | 674	712 | 712 | 712	750 | 750 | 750
N	HANDLEBAR WIDTH (mm)	760	760	760	780
O	STEM LENGTH (mm)	40	50	50	50
P	CRANK LENGTH (mm)	165	170	170	170
Q	WHEEL SIZE	F29"/R27.5"	F29"/R27.5"	29"	29"

Sizing

Sizes:

X-Small	150 cm - 163 cm
Small	158 cm - 169 cm
Medium	164 cm - 175 cm
Large	170 cm - 181 cm
