INTRIGUE X E+ 1 PRO | CHAMELEON PLUM | S

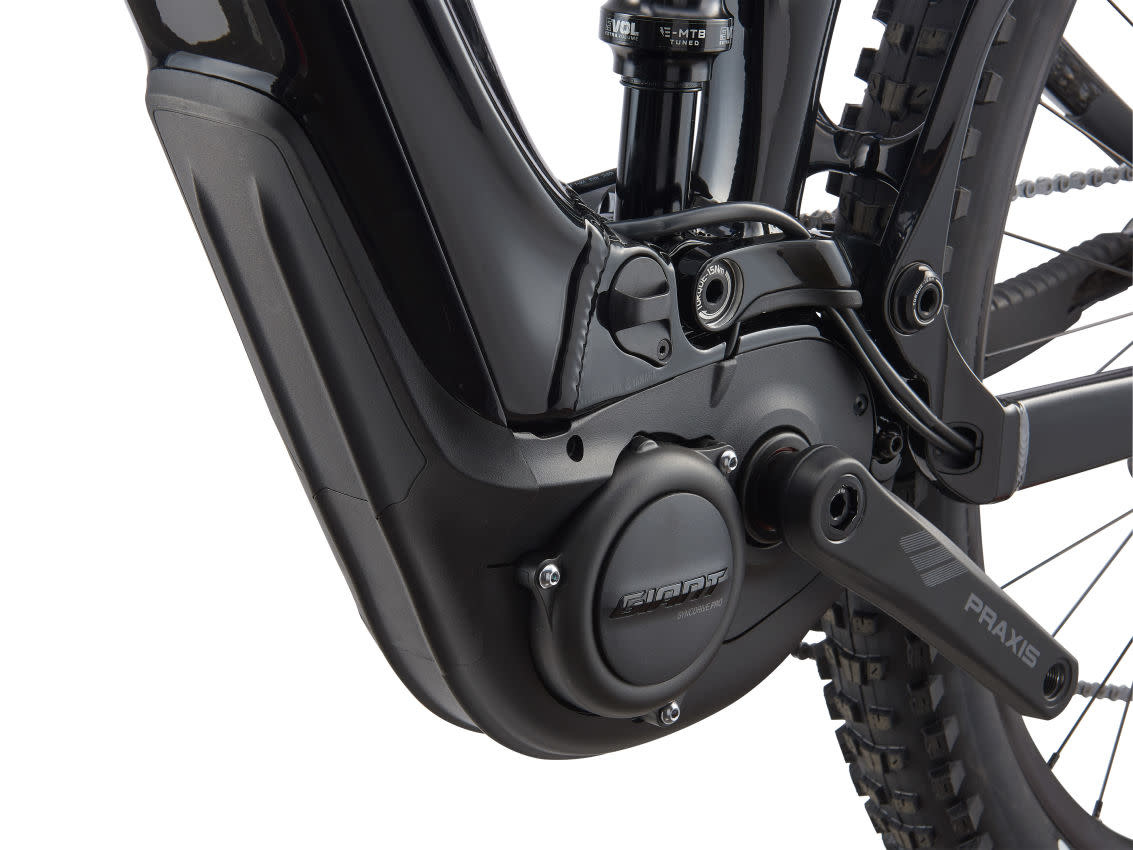

With up to 180 km* range of the ultra-reliable EnergyPak Smart 625Wh battery and the SyncDrive Pro motor and the versatility of flip chip adjustable frame geometry, the Intrigue X E+ allows you to explore more than ever before. *Actual range depends on several factors including weight, elevation, terrain and acceleration.

The easy-to-access EnergyPak Smart is beautifully integrated into a lightweight and durable ALUXX SL aluminum frame designed and tuned for women.

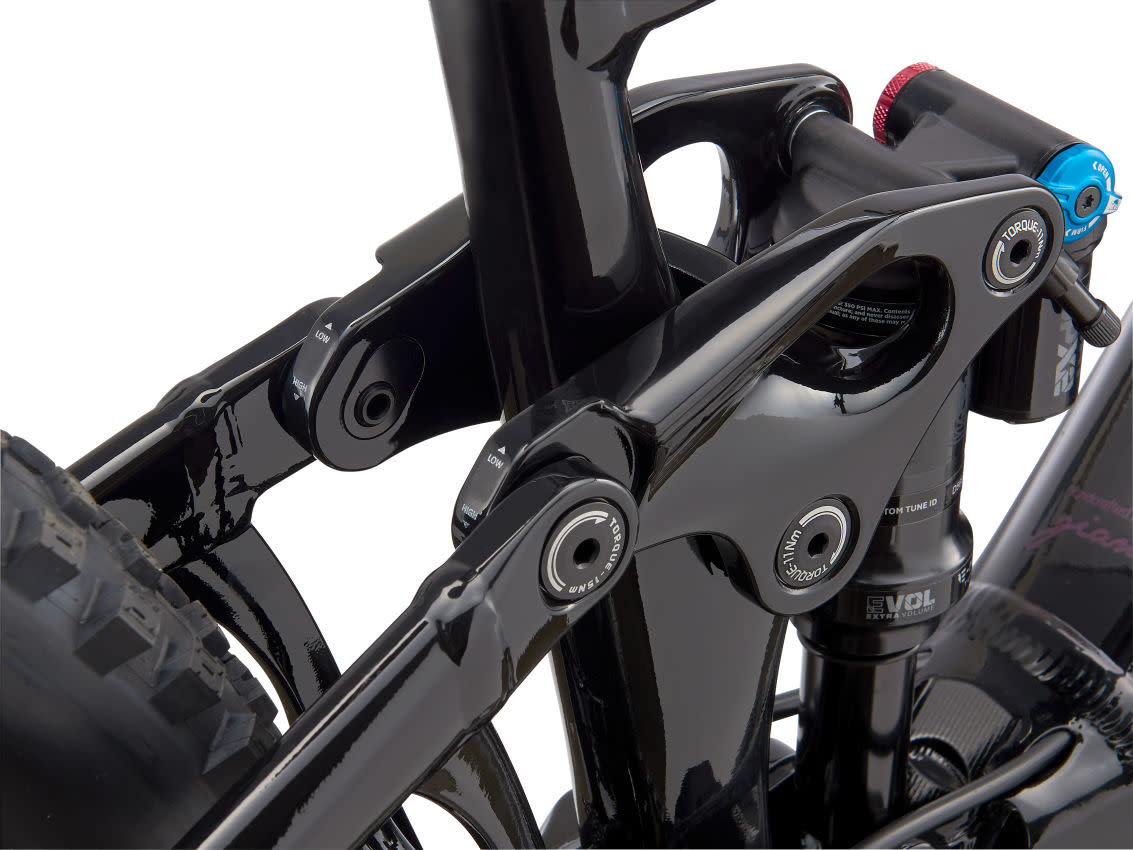

Ample Maestro suspension and Smart Assist Technology with 6-sensor measurements smooth out bumps for a natural ride feel.

Specs

		XS	S	M
		LOW | HIGH	LOW | HIGH	LOW | HIGH
A	SEAT TUBE LENGTH (mm)	385	405	435
B	SEAT TUBE ANGLE	74.5° | 75.2°	76.0° | 76.7°	76.0° | 76.7°
C	TOP TUBE LENGTH (mm)	565 | 565	568 | 568	585 | 585
D	HEAD TUBE LENGTH (mm)	95	95	100
E	HEAD TUBE ANGLE	65.0° | 65.7°	65.8° | 66.5°	65.8° | 66.5°
F	FORK RAKE (mm)	44	44	44
G	TRAIL (mm)	129.6 | 124.2	123.4 | 118.1	123.4 | 118.1
H	WHEELBASE (mm)	1190 | 1193	1195 | 1198	1213 | 1216
I	CHAIN STAY LENGTH (mm)	472 | 472	472 | 472	472 | 472
J	BOTTOM BRACKET DROP (mm)	11 | 1	30 | 20	30 | 20
K	STACK (mm)	585 | 579	608 | 602	613 | 607
L	REACH (mm)	403 | 412	416 | 426	432 | 442
M	STAND OVER HEIGHT (mm)	729 | 738	751 | 760	766 | 775
N	HANDLEBAR WIDTH (mm)	750	750	780
O	STEM LENGTH (mm)	40	40	50
P	CRANK LENGTH (mm)	160	165	165
Q	WHEEL SIZE	27.5+	29"	29"



Sizing

Sizes:

X-Small	152 cm - 163 cm
Small	158 cm - 169 cm
Medium	164 cm - 175 cm
