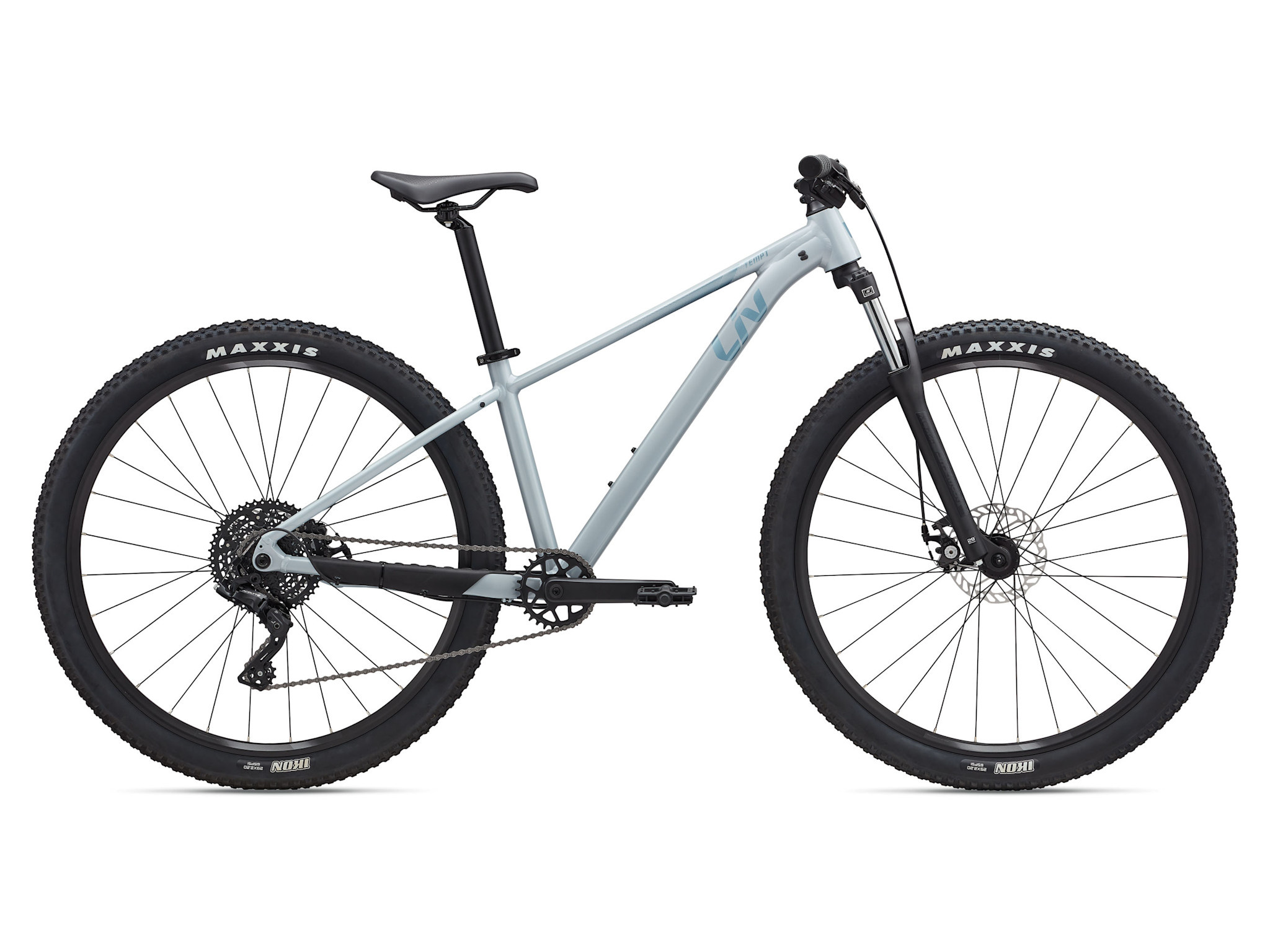

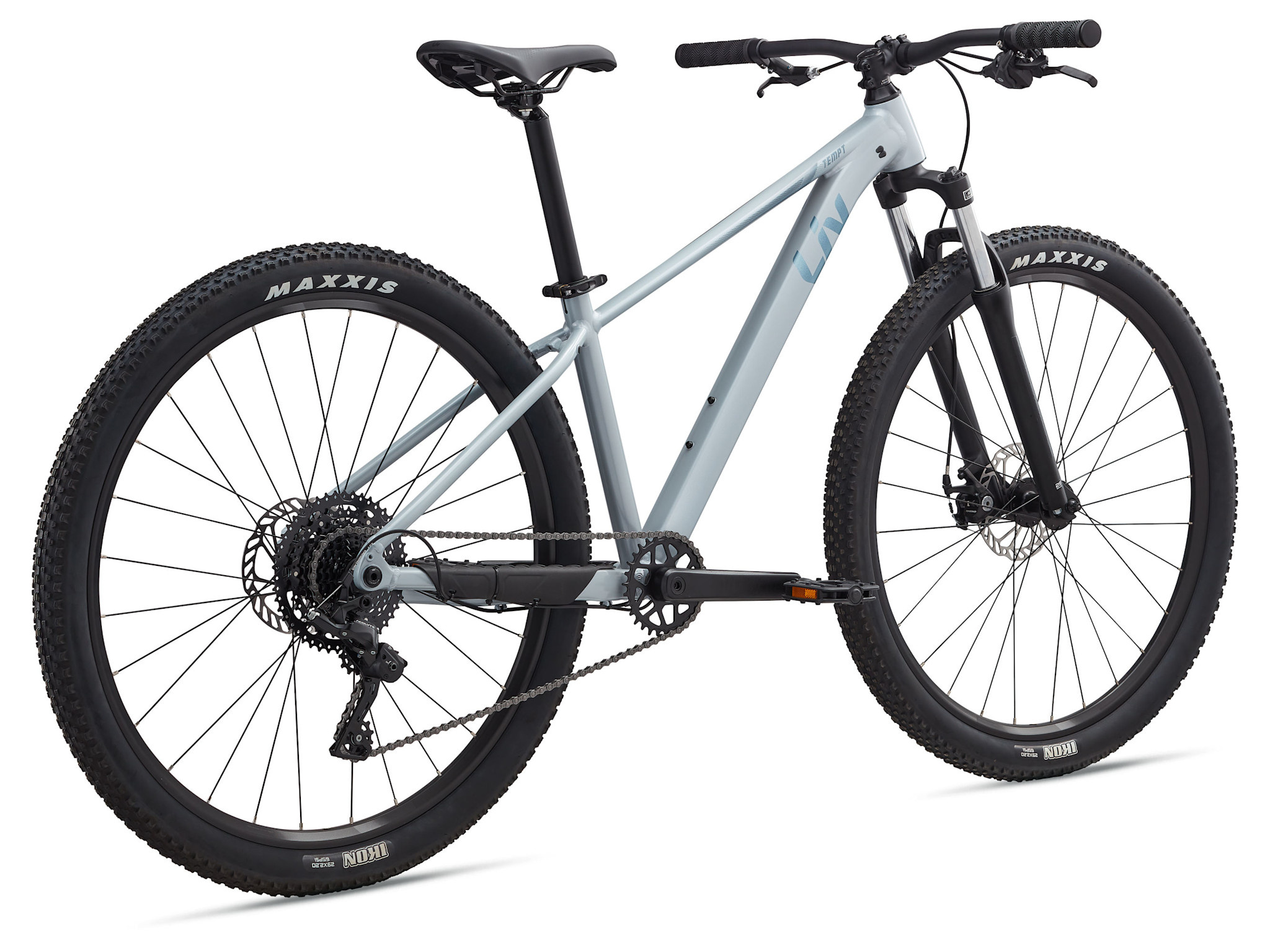

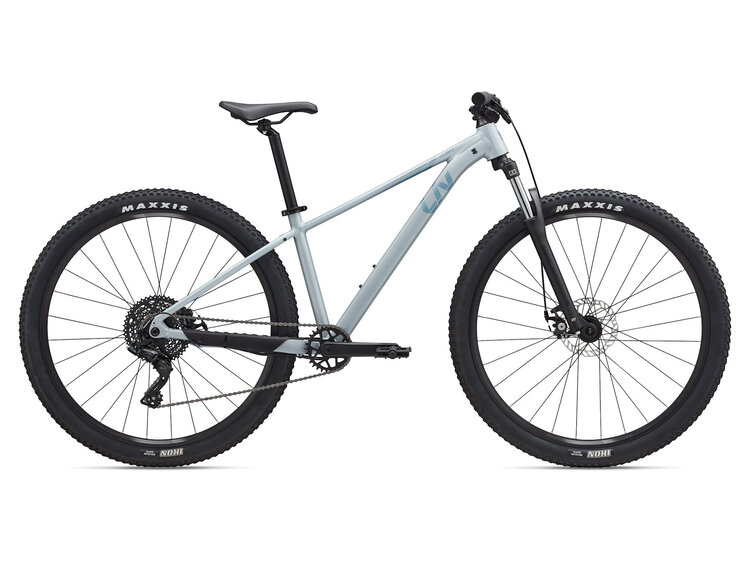

LIV TEMPT 4 | NORDIC BREEZE
LIV TEMPT 4 | NORDIC BREEZE
LIV

TEMPT 4 | NORDIC BREEZE

•••••
Size :
+-
C$749.99
Add to cart
1 in stock
  • Details

    • The Liv Tempt opens the door to mountain biking, inviting you to explore rugged trails and experience the outdoors like never before. But it doesn't stop there - this versatile bike is just as comfortable on city streets, ready to take you wherever your journey leads.

    KEY PERFORMANCE FACTORS

    Modern MTB Design
    Tapered fork steerer tubes*, quality components like a 1x drivetrain* with a clutch equipped rear derailleur, thru-axle hubs*, internal cable routing (including dropper post compatibility), and integrated chainstay protection provide everything you need to build confidence and skills on the trails. (*select models)

    Off-Road Control
    The new geometry is optimized for confident trail riding, with two wheel size options (27.5-or-29-inch) based on frame size. It's also designed to match front suspension travel with either an 80mm or 100mm fork. All models have clearance for high-volume tires (up to 2.4 inches) for traction and grip on technical terrain.

    Light and Durable
    The all-new ALUXX aluminum frame features updated tube shaping and a lighter overall weight for improved performance on off-road terrain.

    Specs

    Pedals MTB caged
    Fork SR Suntour XCE, QR, steel steerer, XS, S: 80mm travel (27.5) S, M, L:100mm travel (29)
    Hubs alloy, sealed bearing
    Rims 27.5": Giant GX03V 27.5", alloy, double wall, 21mm inner width 29": Giant GX03V 29", alloy, double wall, 21mm inner width
    Stem Giant Sport, 7-degree 27.5" XS: 40mm, S: 40mm 29" S: 40mm, M: 50mm, L: 50
    Chain KMC 8.3
    Frame ALUXX-grade aluminum, disc
    Tires Maxxis Ikon 27.5x2.4" or 29x2.4", 60tpi wire bead
    Brakes TKB-172, mechanical
    Rotors [F]160mm, [R]160mm rotors
    Saddle Contact Ergo
    Spokes stainless, 14g
    Crankset ProWheel C10Y-NW 52.5mm chainline 32t (27.5") & 30t (29") 27.5" XS: 165mm, S: 165mm 29" S: 170mm, M: 170mm, L: 170mm
    Seatpost Giant Sport, 30.9mm 27.5" XS:100x350mm, S: 100x350mm 29" S: 100x350mm, M:100x375mm, L : 100x375mm
    Shifters Microshift, Acolyte 1x8, SL-M6180-R
    Handlebars Giant Connect Trail, 31.8mm 27.5" XS: 690mm, S: 690mm 29" S: 750mm, M: 750mm, L: 750mm
    Tape/Grips Giant Sole-O
    Brake Levers RS360A, mechanical
    Bottom Bracket cartridge
    Rear Derailleur Microshift, Acolyte 1x8, RD-M5185M with clutch
    Accessories & Extras 2.4" max tire size, max chainring 32T
    Cassette/Freewheel Microshift, Acolyte, CS-H083, 12-46

    * Subject to change without notice.

    GEOMETRY



        XS (27.5") S (27.5") S (29") M (29") L (29")
    A Seat Tube Length (mm) 330 365 380 410 450
    A1 Seat Post Insertion Depth (mm) 280 310 330 360 220
    B Seat Tube Angle 74.0° 74.0° 74.5° 74.5° 74.0°
    C Top Tube Length (mm) 538 558 571 599 610
    D Head Tube Length (mm) 90 95 90 100 105
    E Head Tube Angle 67.0° 67.0° 67.5° 67.5° 68.5°
    F Fork Rake (mm) 44 44 44 44 51
    G Trail (mm) 105.2 105.2 108.9 108.9 94.3
    H Wheelbase (mm) 1080 1101 1129 1158 1160
    I Chain Stay Length (mm) 440 440 455 455 455
    J Bottom Bracket Drop (mm) 45 45 55 55 55
    K Stack (mm) 548 553 593 602 610
    L Reach (mm) 381 400 407 432 435
    M Stand Over Height (mm) 680 689 689 708 757
    N Handlebar Width (mm) 690 690 690 690 750
    O Stem Length (mm) 40 40 40 50 50
    P Crank Length (mm) 165 165 170 170 175
    Q Wheel Size 27.5" 27.5" 29" 29" 29"



    Sizes:
    Frame Size Rider Height (cm) Rider Height (in)
    X-Small 150 - 163 4'11" - 5'4"
    Small 158 - 169 5'2" - 5'7"
    Medium 164 - 175 5'5" - 5'9"
    Large 170 - 181 5'7" - 5'11"
