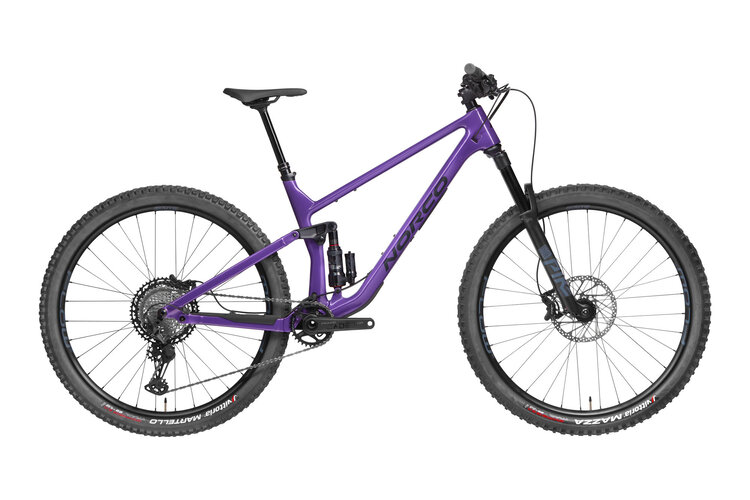

-25%

OPTIC C3 | PURPLE/BLACK | L

•••••

SKU: 0640422956

Size:

Large

Quantity:

C$5,099.99C$3,849.99

Unit price: C$0.00 /

Add to cart

2 in stock

Overview

The Optic C3 is an aggressive short-travel sled that rips on descents and can get back to the top without a gondola.

Details

The Optic C3 sharpens your view on high speed trails.

The precision suspension kinematics and custom DH shock creates 125mm of rear travel, matched with a gravity-eating 140mm fork for the control you need to keep your mind on the trail ahead.

Reasons It's Rad

Fast never felt this fun.
Designed to work so you can play.
Components selected with speed on the brain.
Matching each Optic to the human who rides it.

Specs

Frame	Carbon Front Triangle, Aluminum Rear, 125mm Travel, Ride Aligned™
Fork	RockShox Pike Select RC, DebonAir, 140mm Travel, 42mm Offset
Rear Shock	RockShox Super Deluxe Ultimate DH Custom RC, 190x45mm
Rims	Stan's Flow S1 29", 32H
Hubs	Front: Bear Pawls Sealed Bearing, 15x110mm Boost, 6 Bolt Rear: Bear Pawls Sealed Bearing, 12x148mm Boost, Micro Spline, 6 Bolt
Spokes	Sapim Sprint DB Stainless
Tires	Front: Vittoria Mazza 2.4" Trail G2.0 Rear: Vittoria Martello 2.35" Trail G2.0
Bottom Bracket	Praxis M30 PF92
Crankset	Praxis Cadet M30, 32T, 170mm
Shifters	Shimano SLX SL-M7100-IR I-Spec EV
Rear Derailleur	Shimano XT RD-M8100
Cassette/Freewheel	Shimano SLX, 10-51T, 12 Speed
Chain	Shimano Deore
Brakes	Front: Shimano BR-MT420, 4 Piston, Organic Pads Rear: TRP Slate EVO, 4 Piston, Resin Pads
Rotors	TRP 180mm
Brake Levers	TRP Slate EVO
Handlebars	Butted 6061 Alloy, 780mm, 20mm Rise
Tape/Grips	DMR Deathgrip
Stem	6061 Alloy, 45mm Length, 35mm Clamp
Headset	FSA Internal Sealed Bearing
Seatpost	X-Fusion Manic Dropper, 31.6mm, 125mm (S), 150mm (M,L), 170mm (XL)
Saddle	Fizik Alpaca Terra, Wingflex
Accessories & Extras	Chain Tensioner: GW 1x Flip Guide

* Subject to change without notice.

Geometry

Geometry Chart:
Frame Size	Small	Medium	Large	X-Large
Wheel Size (in)	29"	29"	29"	29"
Travel (mm front/mm rear)	140/125	140/125	140/125	140/125
Reach (mm)	420	450	480	510
Head Tube Angle (°)	65	65	65	65
Fork Offset (mm)	42	42	42	42
Seat Tube Length (mm)	395	415	445	485
Effective Seat Tube Angle (°)	76	76	76	76
Rear Centre Length (mm)	425	430	435	440
Bottom Bracket Drop (mm)	38	38	38	38
Bottom Bracket Height (mm)	337	337	337	337
Horizontal Top Tube (mm)	572	605	637	669
Wheelbase (mm)	1157	1196	1235	1275
Standover (mm)	664	680	698	719
Head Tube Length (mm)	100	110	120	130
Trail (mm)	129	129	129	129
Recommended Seatpost Drop (mm)	125	150	170	170
Maximum Post Insertion (mm)	205	220	240	250
Stem Length (mm)	45	45	45	45
Crank Length (mm)	170	170	170	170
Tire Size (in)	2.35" – 2.6"	2.35" – 2.6"	2.35" – 2.6"	2.35" – 2.6"
Water Bottle Compatible	1 x 750 mL	1 x 750 mL	1 x 750 mL	1 x 750 mL

**Sizing**
Size	Height (inches)	Height (cm)
X-Small	4'9 1/2" - 5'1 1/2"	146 - 156cm
Small	5'1" - 5'5"	155 - 165cm
Medium	5'4 1/2" - 5'8 1/2"	164 - 174cm
Large	5'8" - 6'0"	173 - 183cm
X-Large	5'11 1/2" - 6' 3 1/2"	181 - 191cm
