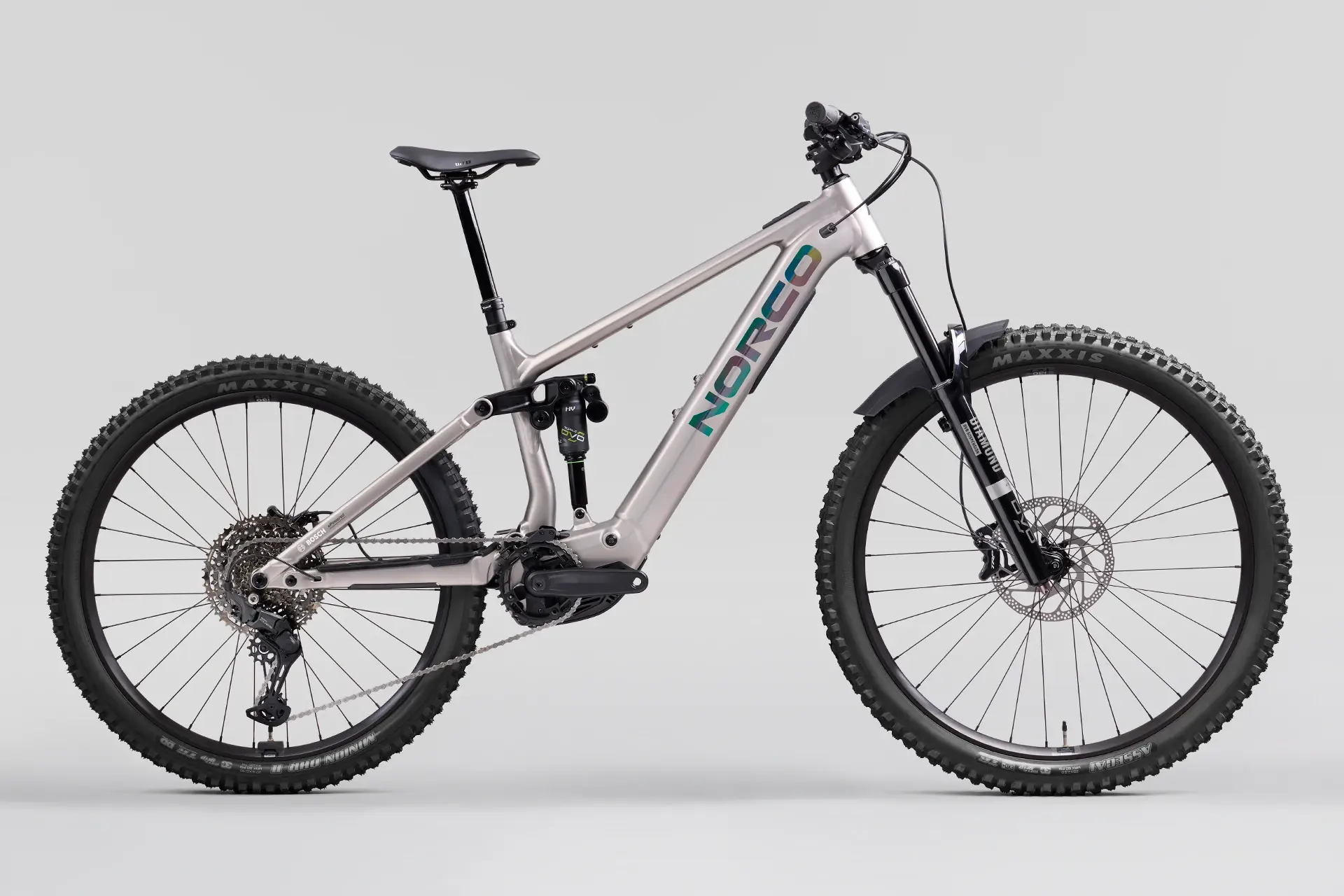

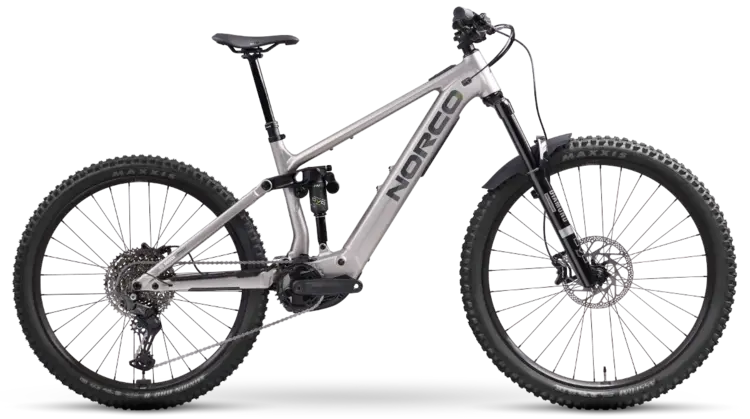

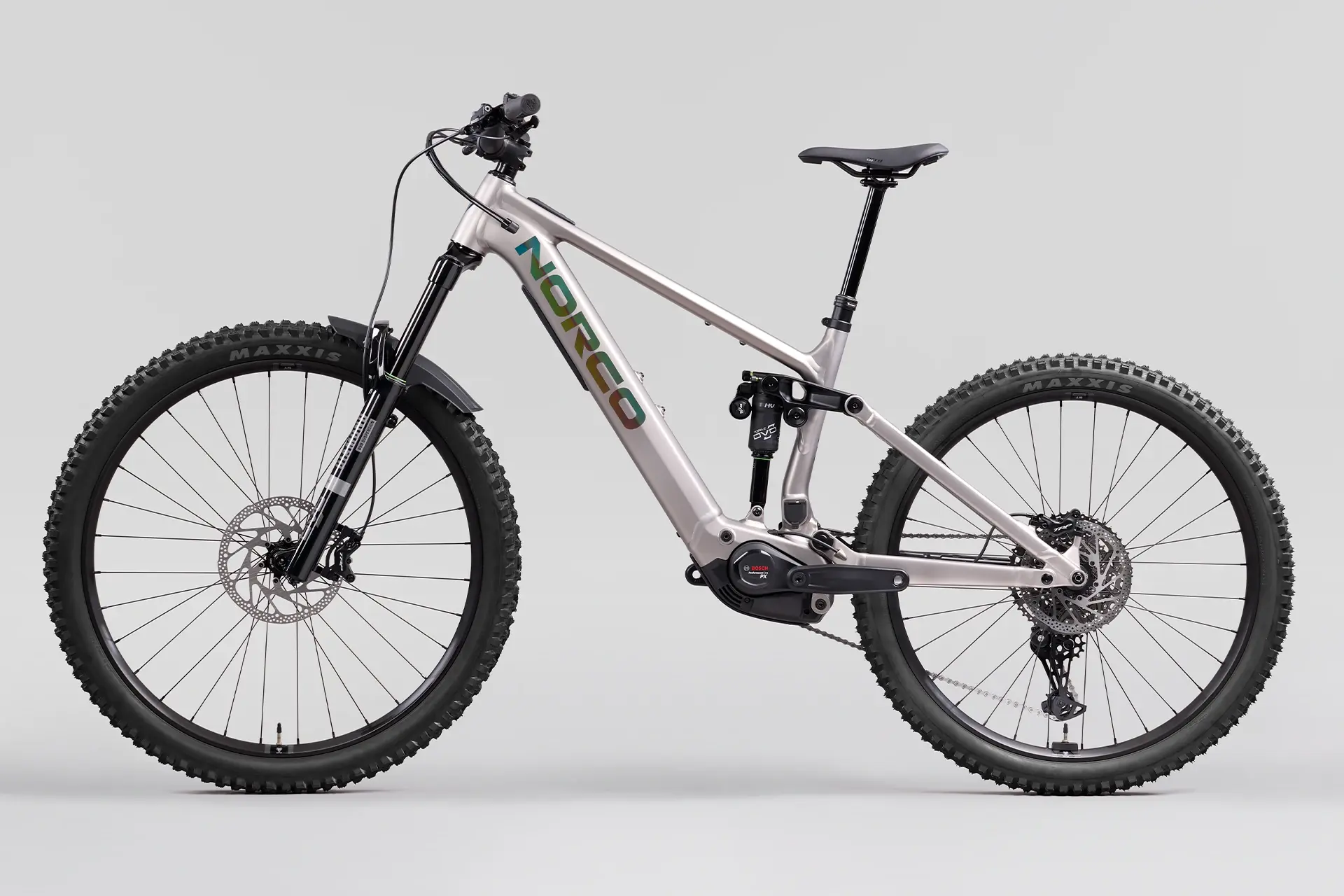

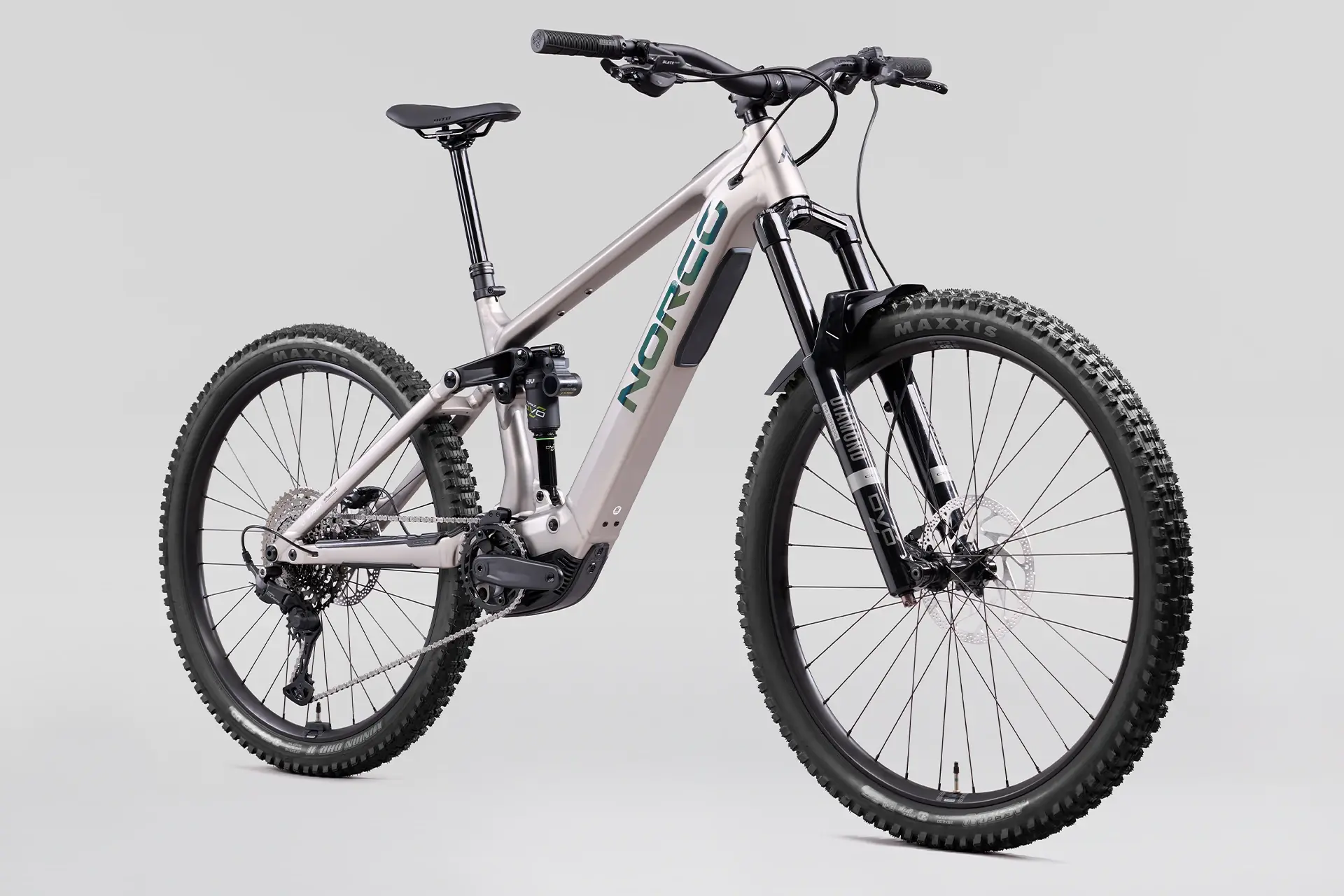

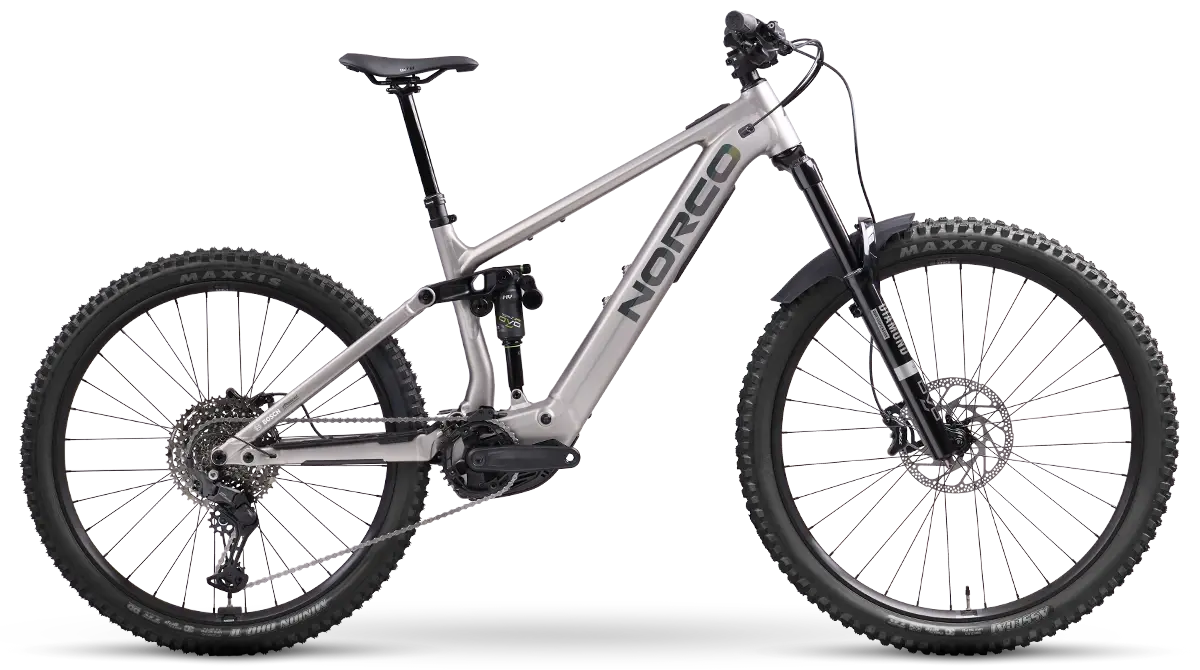

SIGHT VLT BOSCH A3 | GREY

C$5,998.99
Add to cart
1 in stock
  • Details
  • 2027 Sight VLT Bosch A3

    90Nm Torque
    90Nm Torque
    Full-Powered Motor
    Up to 700W Power
    Up to 700W Power
    With up to 400% Pedal Assist
    600Wh Battery
    600Wh Battery
    + 250Wh Range Extender Compatible
    Class 1 eMTB
    Class 1 eMTB
    32 Km/h (20mph)
    Bosch Drive System
    Bosch Drive System
    Performance Line PX
    Bosch eBike Flow App
    Bosch eBike Flow App
    Personalize Your Ride


    Sight VLT Bosch A3 delivers full-power eMTB performance where it matters most. No fluff, just composure and confidence. Designed for easy maintenance and serviceability, built for all-mountain riding. With 160 mm of travel in the front and 150 mm in the rear, with Norco’s proven VPS platform and dependable system. Everything you need to get out and go, more.

    Performance and control where it counts.

    The Norco Sight VLT Bosch A3 delivers top-tier ride quality and exceptional value, without compromising what matters most. At its core, the Bosch PX motor provides the power and torque to conquer the steepest climbs, delivering 90Nm of torque and 700W of peak power. Progressive all-mountain geometry and a mixed-wheel setup give the versatility to tackle any terrain with ease. Size-specific geometry ensures balanced weight distribution and a precise fit across every frame. Meticulously tuned VPS suspension and powerful brakes keep every ride controlled and confident.

    Details

    Specs

    Frame Aluminum Frame, 150mm Travel, UDH, Eagle Transmission Compatible, Ride Aligned™

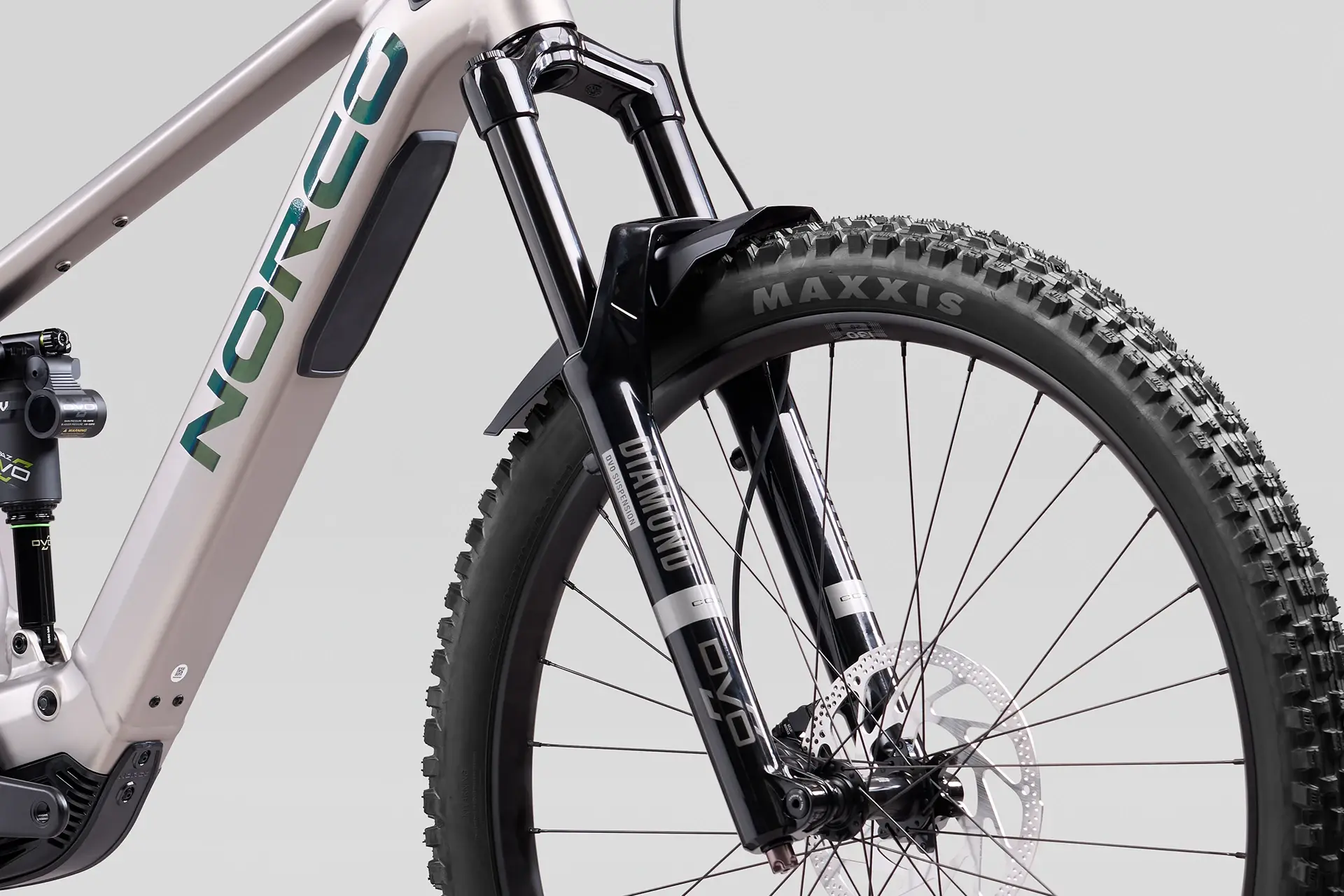

    Fork DVO Diamond 36 Core, High/Low Speed Compression | Rebound , 160mm, 44mm Offset

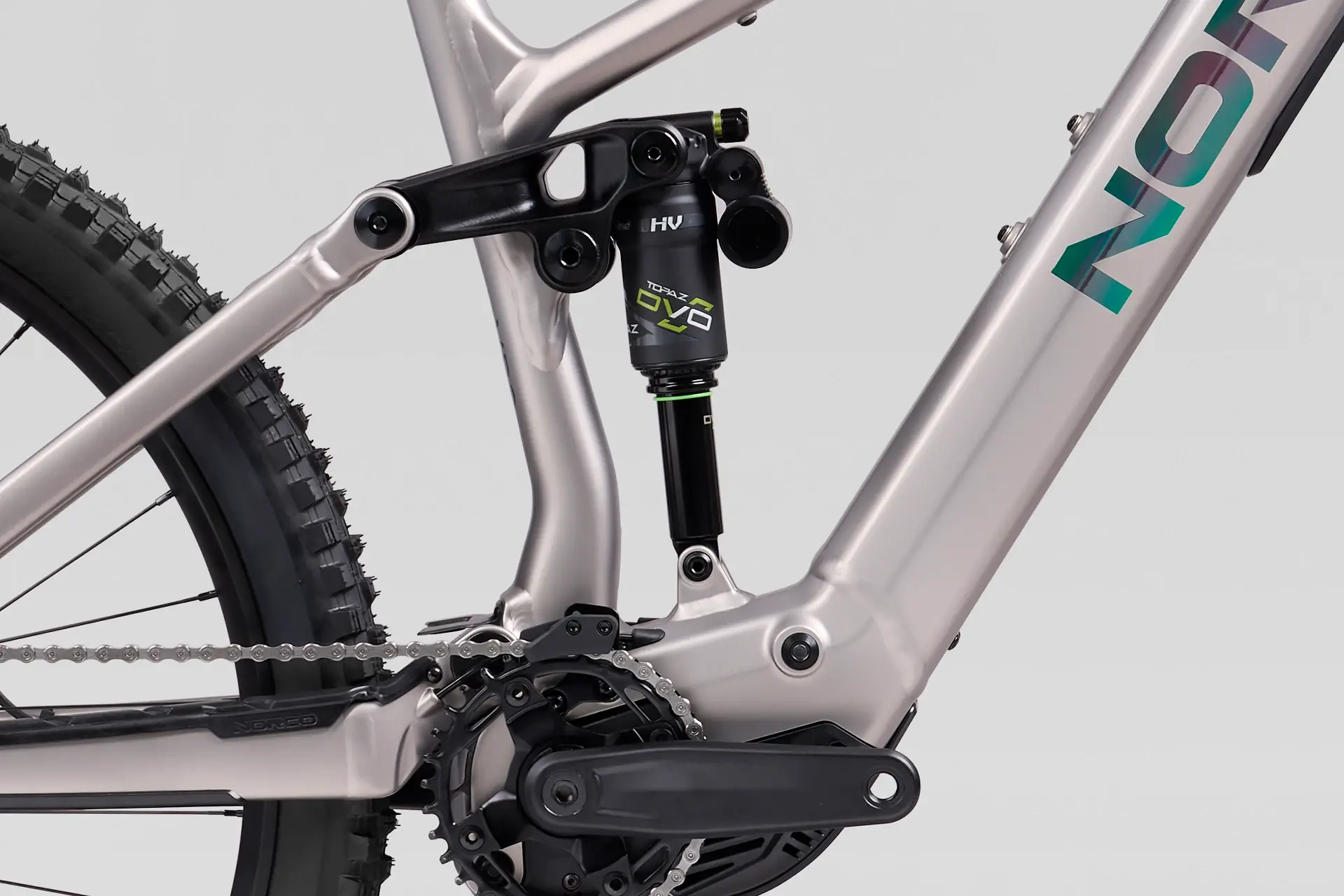

    Rear Shock DVO Topaz Core, 205x60mm TR
    Rims WTB ST Tough TCS 2.0 ,30 mm, 32H, 29"-27.5" F/R
    Hubs Front: Shimano HB-MTC500-15-B,15x110mm Boost, 32H, C-lock
    Rear: Shimano FH-TC500-MS-B, 12x148mm Boost, HG, 32H, C-Lock
    Spokes Sapim Sprint DB Spokes 2.0/1.8/2.0,Black stainless steel
    Tires Front: Maxxis Assegai, 3C MaxxGrip EXO+, 29x2.5", Folding
    Rear: Maxxis Minion DHR II, 3C Maxx Grip DD, 27.5.5x2.4", Folding
    Bottom Bracket Bosch PX
    Crankset Prowheel Aluminum Bosch Cranks, 34T, 155mm (S1,S2,S3) - 160mm (S4, S5)
    Shifters Shimano CUES SL-U6000-11R, 11sp

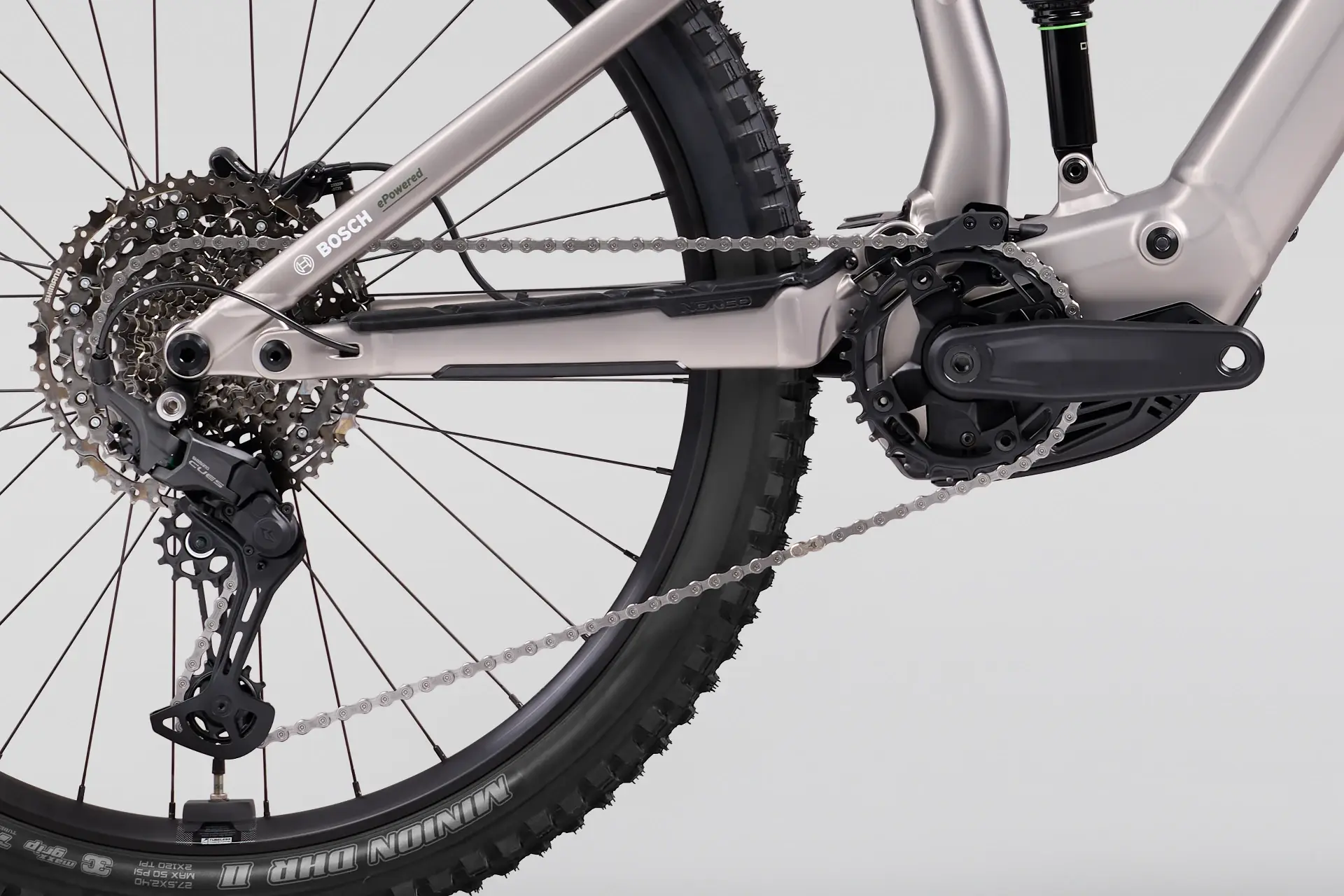

    Rear Derailleur Shimano CUES RD-U6000, 11sp, GS
    Cassette/Freewheel Shimano CUES CS-LG3400-11, 11-50T, 11sp
    Chain Shimano CUES CN-LG500-Q, 11sp
    Brakes TRP Slate EVO, Organic Pads
    Rotors Front: TRP 203mm, 2.3mm Thickness, Centerlock
    Rear: TRP RS01E, 180mm, 2.3mm Thickness, Centerlock
    Brake Levers TRP Slate EVO

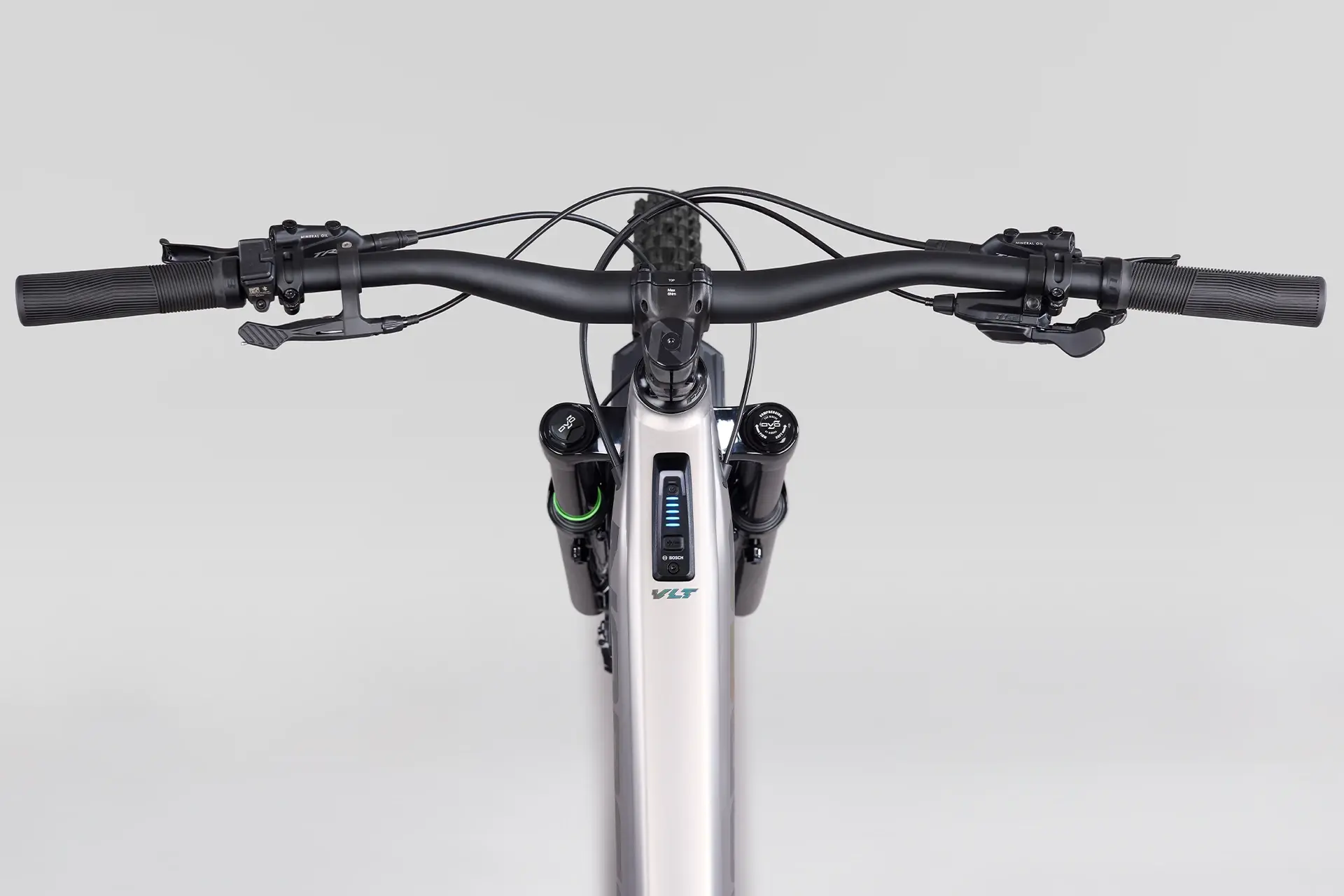

    Handlebars Norco 6061 DB Alloy, 800mm, 25mm rise (S1,S2) - 35mm rise (S3,S4,S5
    Tape/Grips WTB Wavelength, 140mm Length
    Stem Norco 6061, 40mm Length, 35mm Clamp
    Headset FSA No.55 Sealed Bearing, 1 1/8" - 1.8" Tapered, ( ZS44/28.6 | ZS56/40 )
    Seatpost TranzX YSI34QL , 31.6mm, 125 (S1) -150mm (S2) -170mm (S3) -200mm (S4,S5)
    Saddle WTB Solano Med, 142x240 mm, Steel Rails

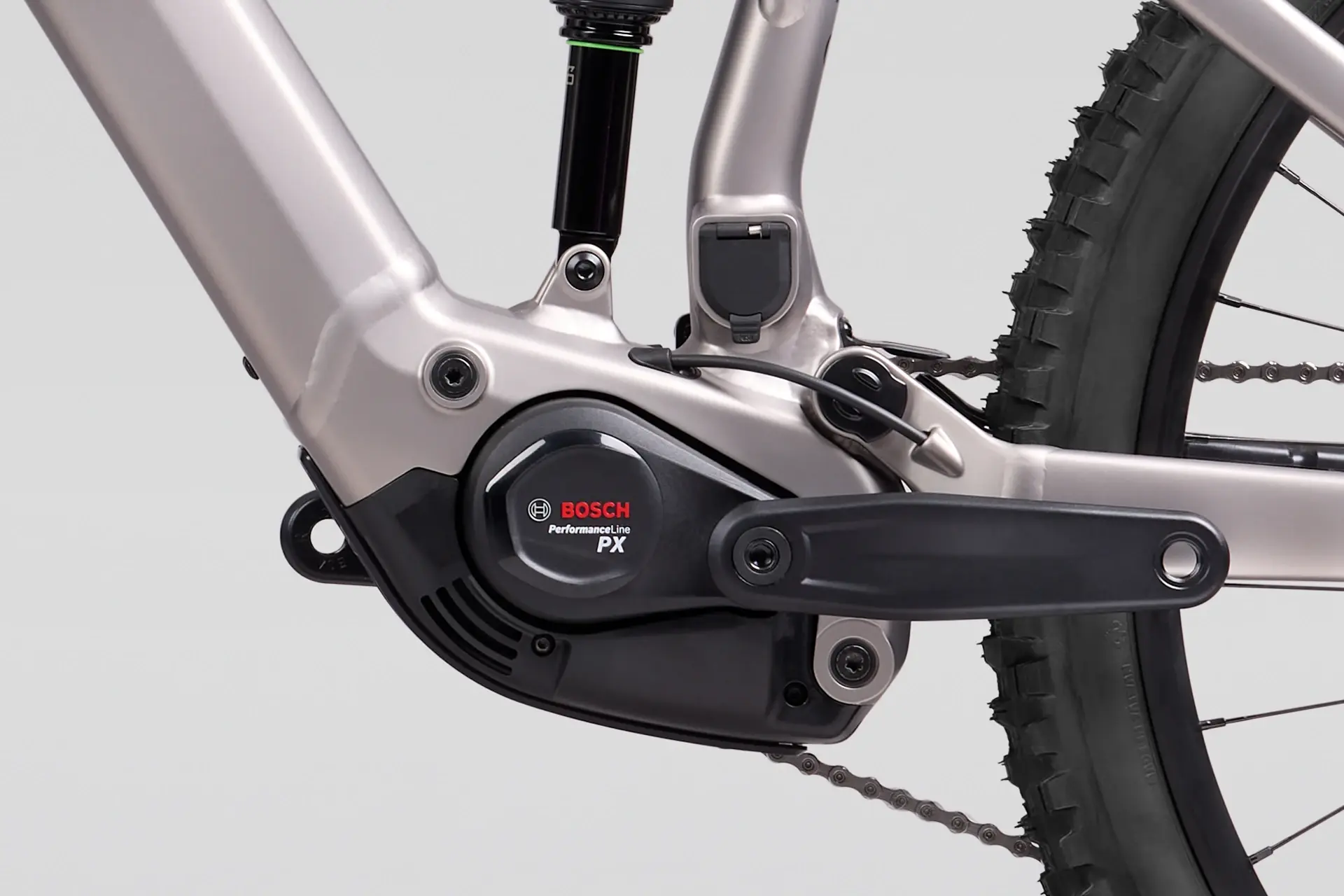

    Motor Bosch Performance Line PX, 90 Nm / 700W
    Battery Bosch PowerTube 600 Wh

    * Subject to change without notice.

    GEOMETRY

    Sight VLT Bosch A

    1 2 3 4 5
      Wheel Size 29"/27.5" 29"/27.5" 29"/27.5" 29"/27.5" 29"/27.5"
      Travel (mm front/mm rear)
    160/150
      Reach 430 450 470 490 510
      Stack 616 625 634 643 652
    HTA Head Tube Angle
    64
    OS Fork Offset
    44
    ST Seat Tube Length 385 395 415 445 475
    STA Effective Seat Tube Angle 77 77.25 77.5 77.75 78
    RC Rear Centre Length 432 436 440 444 448
    BBDF/R Bottom Bracket Drop (Front/Rear)
    27/8
    BBH Bottom Bracket Height
    347
    HTT Horizontal Top Tube 571 587 604 621 638
    WB Wheelbase 1202 1226 1255 1283 1311
    SOH Standover 696 704 706 723 745
    HT Head Tube Length 100 110 120 130 140
      Trail
    133
      Recommended Seatpost Drop 125 150 170 200 230
      Maximum Post Insertion 240 250 270 300 330
      Stem Length
    40
      Crank Length
    155
    160
      Tire Size
    2.35" – 2.5"
      Water Bottle Compatible 1 x 620mL
    1 x 750mL



    SIZING



    Size Height Range (ft/in) Height Range (cm)
    Size 1 5'0"-5'5" 148-165
    Size 2 5'4"-5'8" 163-173
    Size 3 5'7"-5'10" 170-178
    Size 4 5'10"-6'2" 178-188
    Size 5 6'1"-6'6" 185-198
