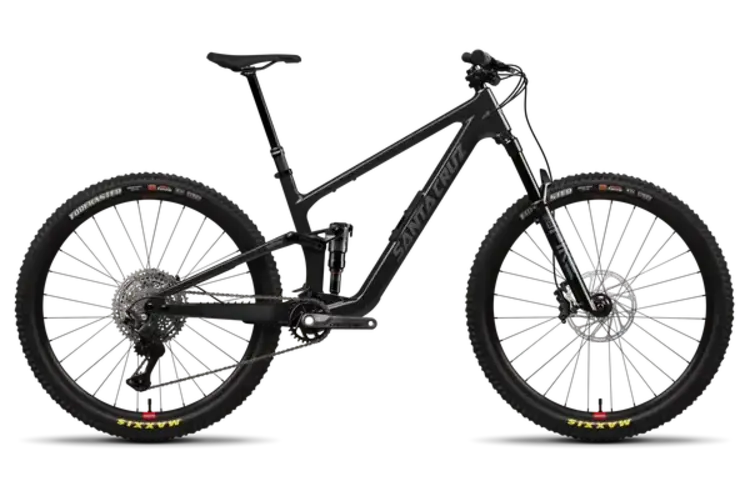

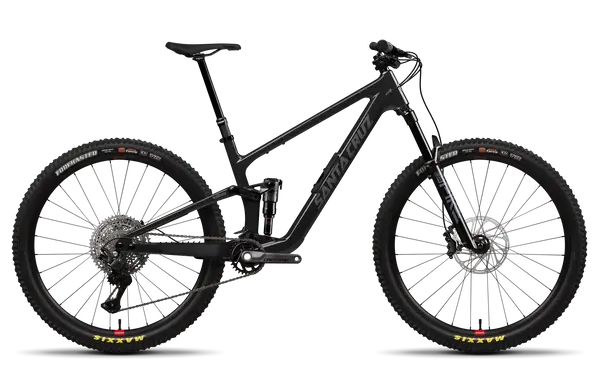

SANTA CRUZ TALLBOY 6 CC DEORE | GLOSS CARBON
SANTA CRUZ

TALLBOY 6 CC DEORE | GLOSS CARBON

•••••
Size :
+-
C$6,998.99
Add to cart
1 in stock
  • Details
    • Material: CC
    Front (MM): 140
    Rear (MM): 130
    Wheel Size: 29"
    Weight (lbs): 31.79
    Weight (kg): 14.42

    The Tallboy is a short-travel bike with long legs. Our perennial 29-inch bike has gone on a diet and bulked up the amount of travel to fit the kind of rider looking to maximize power hours or just ride all the hours. It’s light and efficient enough to climb with the best of them, yet punches way above its weight class as soon as the trail turns down. Excellent suspension, big wheels, thoroughly-tuned carbon layup and rock-solid reliability let you go as hard as you want.

    Specs

    Frame Carbon CC
    Fork RockShox Pike Base, 140mm
    Rear Shock RockShox Deluxe Select+, 185x50
    Rims Reserve 30|TR AL
    Hubs Front: Shimano TC500, 15x110, 6-Bolt
    Rear: Shimano TC600, 12x148, MicroSpline, 6-Bolt
    Tires Front & Rear: Maxxis Forekaster 29"x2.4", MaxxTerra, EXO
    Bottom Bracket Shimano MT501 68/73mm Threaded
    Crankset Shimano Deore M6200, 32t XS-S: 165mm, M-XXL: 170mm
    Shifters Shimano Deore M6200, 12spd w/ Wolf Tooth Shiftmount Adapter for MM
    Rear Derailleur Shimano Deore M7200, 12spd
    Cassette/Freewheel Shimano Deore M6200, 10-51t
    Chain Shimano Deore M6100, 12spd
    Brakes SRAM DB8
    Rotors Front: SRAM Centerline, 200mm
    Rear: SRAM Centerline, 180mm
    Handlebars Burgtec Aluminum Bar, 35mm XS-M: 760mm, 20mm Rise, L-XXL: 800mm, 30mm Rise
    Tape/Grips Santa Cruz Bicycles House Grips
    Stem OneUp Enduro Stem All Sizes: 42mm
    Headset FSA IS-2/47/42 ACB
    Seatpost SDG Tellis Dropper, 31.6 XS: 125mm, S: 150mm, M: 170mm, L-XL: 210mm, XXL: 230mm
    Saddle SDG Bel-Air V3 Steel
    Pedals Sold Separately

    * Subject to change without notice.

    GEOMETRY

    All units are in millimeters or degrees.
      XS S M L XL XXL
    Reach (Hi/Lo) 410/407 435/432 455/452 475/472 495/492 520/517
    Stack (Hi/Lo) 601/603 610/612 624/626 633/635 646/649 660/662
    Head Tube Angle (Hi/Lo) 65.1°/64.8° 65.1°/64.8° 65.1°/64.8° 65.1°/64.8° 65.1°/64.8° 65.1°/64.8°
    Head Tube Length 90 100 115 125 140 155
    Rear Center (Hi/Lo) 435/435.5 435/435.5 435/435.5 438/438.5 440/440.5 444/444.5
    Front Center (Hi/Lo) 721/721 750/750 777/776 801/801 827/827 858/858
    BB Height (Hi/Lo) 336/333 336/333 336/333 336/333 336/333 336/333
    BB Drop (Hi/Lo) 36/39 36/39 36/39 36/39 36/39 36/39
    Wheelbase (Hi/Lo) 1156/1156 1185/1186 1212/1212 1239/1239 1267/1267 1302/1303
    Top Tube Length (Hi/Lo) 542/542 569/570 596/596 616/616 637/638 666/666
    Seat Tube Length (Hi/Lo) 360/370 380/380 400/400 420/430 450/450 500/500
    Seat Tube Angle (Hi/Lo) 77.6°/77.3° 77.6°/77.3° 77.3°/77° 77.4°/77.2° 77.5°/77.3° 77.5°/77.3°
    Seat Tube Angle at Saddle Height (Hi/Lo) 77.4/77.1 at 640 77/76.8 at 680 76.5/76.3 at 730 76.5/76.3 at 780 76.5/76.3 at 830 76.5/76.3 at 870
    Standover Height (Hi/Lo) 699/695 703/699 718/714 728/725 742/739 758/755
