| Frame |
All new Levo 4 M5 Alloy frame, 150mm travel,, adjustable chainstay, adjustable head tube angle, adjustable bottom bracket, internal SWAT storage 148mm spacing, 29" front wheel/27.5" rear wheel, fork travel up to 180mm |
| Fork |
FOX 36 Rhythm, 29", S2-S6: 160mm S1: 150mm, GRIP damper with Sweep adjust, 44mm offset, 15x110mm boost, through axle |

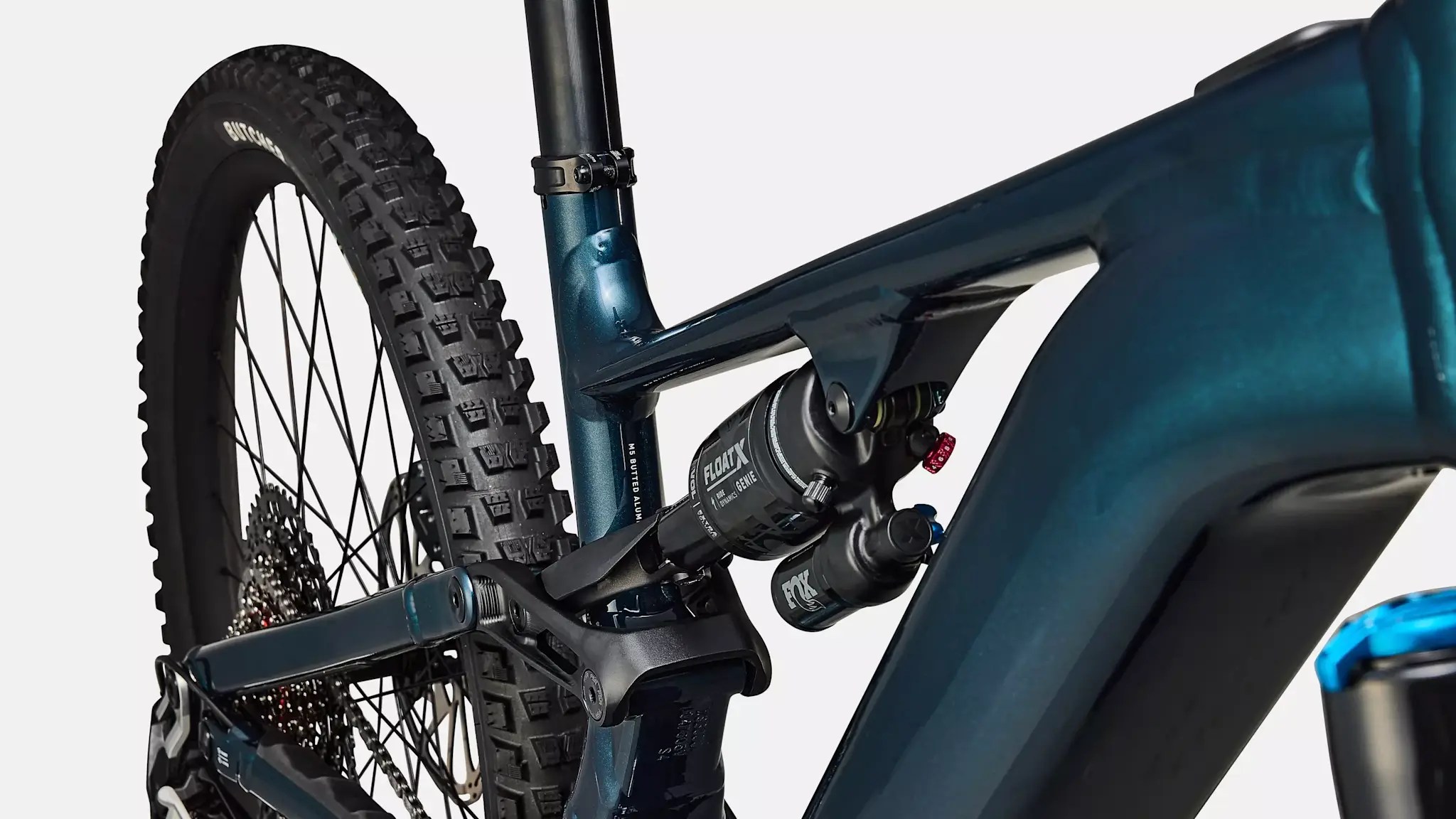

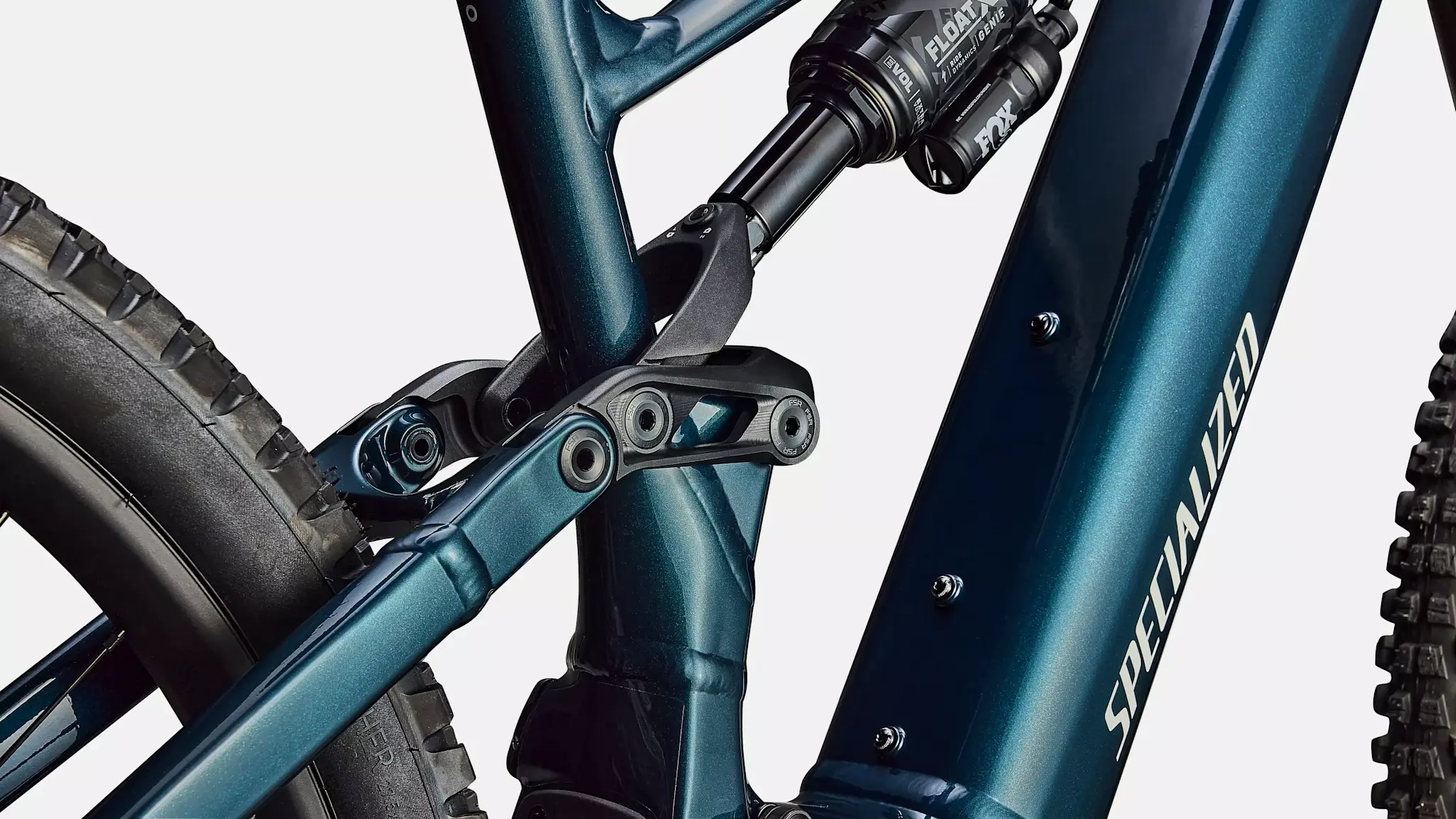

| Rear Shock |
S2-S6: FOX FLOAT X Performance with Specialized GENIE Shock Tech, Ride Dynamics Trail Tune, 2-position lever, LSR adjustment, 210x55mm, S1: FOX FLOAT Performance, Ride Dynamics Trail Tune, 2-position lever w/ LSR adjustment 210x55mm |
| Rims |
Specialized, hookless alloy, 30mm inner width, tubeless ready |
| Hubs |
Front: Alloy, sealed cartridge bearings, 15x110mm thru-axle, 28h
Rear: Alloy, sealed cartridge bearings, 12x148mm thru-axle, 32h |
| Spokes |
DT Swiss Industry |
| Tires |
Front: Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, TLR, 29x2.4"
Rear: Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, TLR, 27.5x2.4" |
| Bottom Bracket |
N/A |

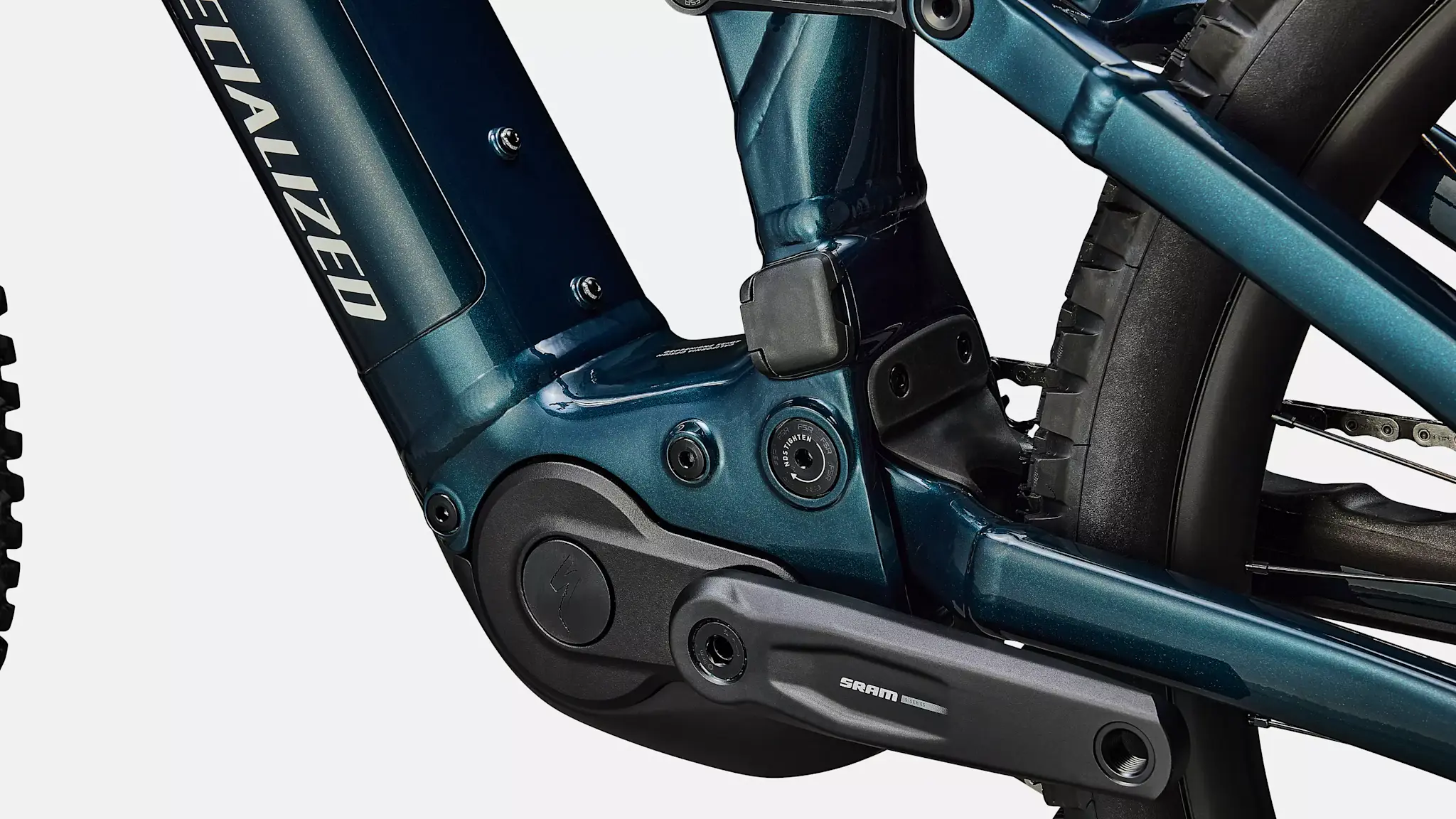

| Crankset |
SRAM S1000 Crankset, ISIS Interface, Integrated Guard, 55mm Chainline, 155mm |
| Shifters |
SRAM 90 trigger, 12-speed, single click |
| Rear Derailleur |
SRAM Eagle 90 T-Type |
| Cassette/Freewheel |
SRAM 1270 Transmission Cassette, 12 Spd,10-52t |
| Chain |
SRAM 70 Transmission Chain |
| Brakes |
SRAM Maven Bronze |
| Rotors |
Front: 4-piston caliper, hydraulic disc, 220mm Centerline rotor
Rear: 4-piston caliper, hydraulic disc, 200mm Centerline rotor |
| Handlebars |
Specialized, 6061 alloy, 6-degree upsweep, 8-degree backsweep, S1-S2: 780mm width and 30mm rise, S3-S6 800mm width and 50mm rise |
| Tape/Grips |
Specialized Trail Grips |
| Stem |
Alloy Trail Stem, 35mm bar bore |

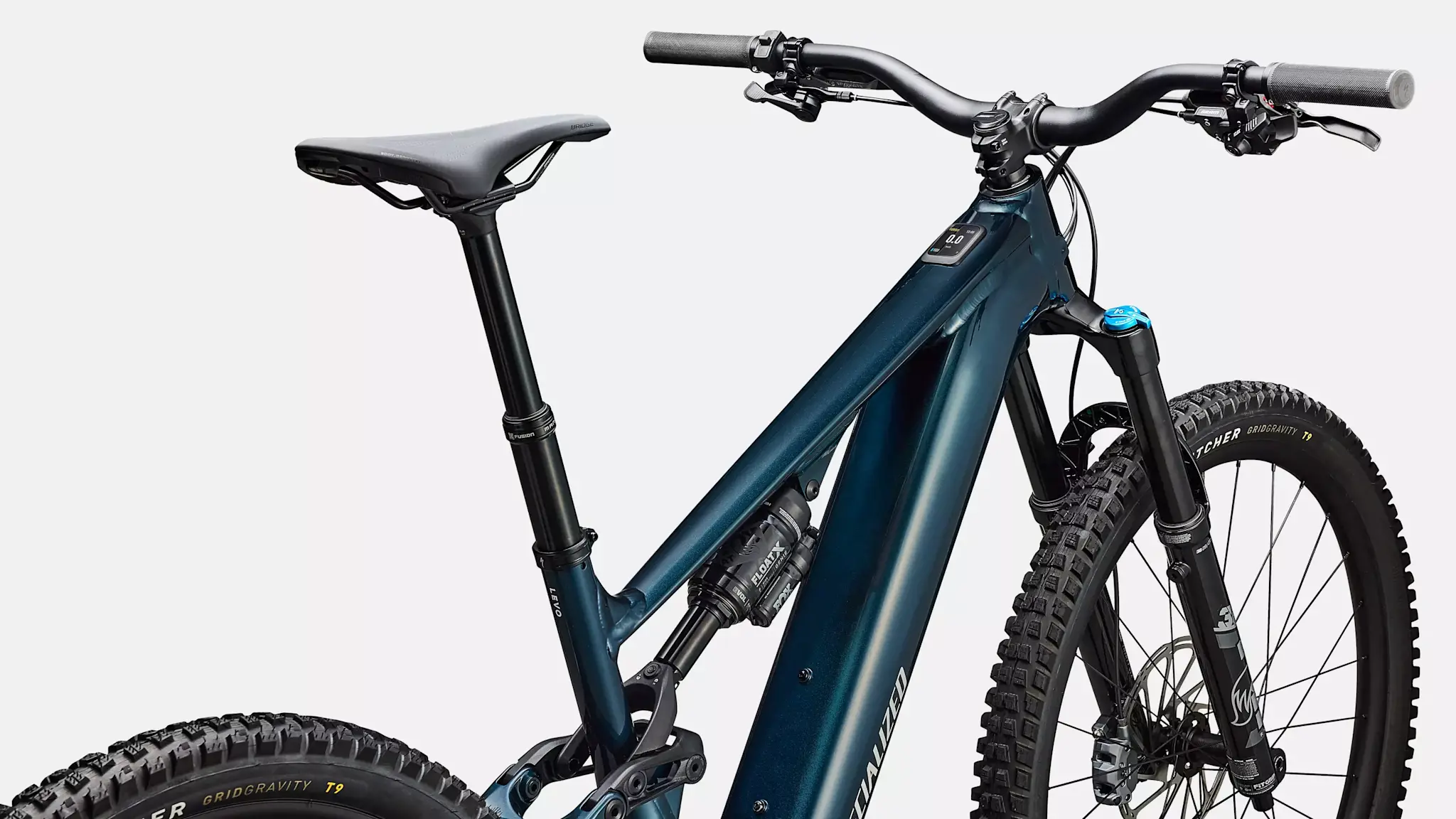

| Seatpost |
X-Fusion Manic, infinite adjustable, two-bolt head, bottom mount cable routing, remote SLR LE lever, 34.9, S1: 100mm, S2: 125mm, S3: 150mm, S4: 170mm, S5/S6: 190mm |
| Saddle |
Bridge Comp, Hollow Cr-mo rails 155/143 |
| Motor |
All New Specialized 3.1 Motor, 101Nm torque, 666W power |
| Battery |
840Wh battery |

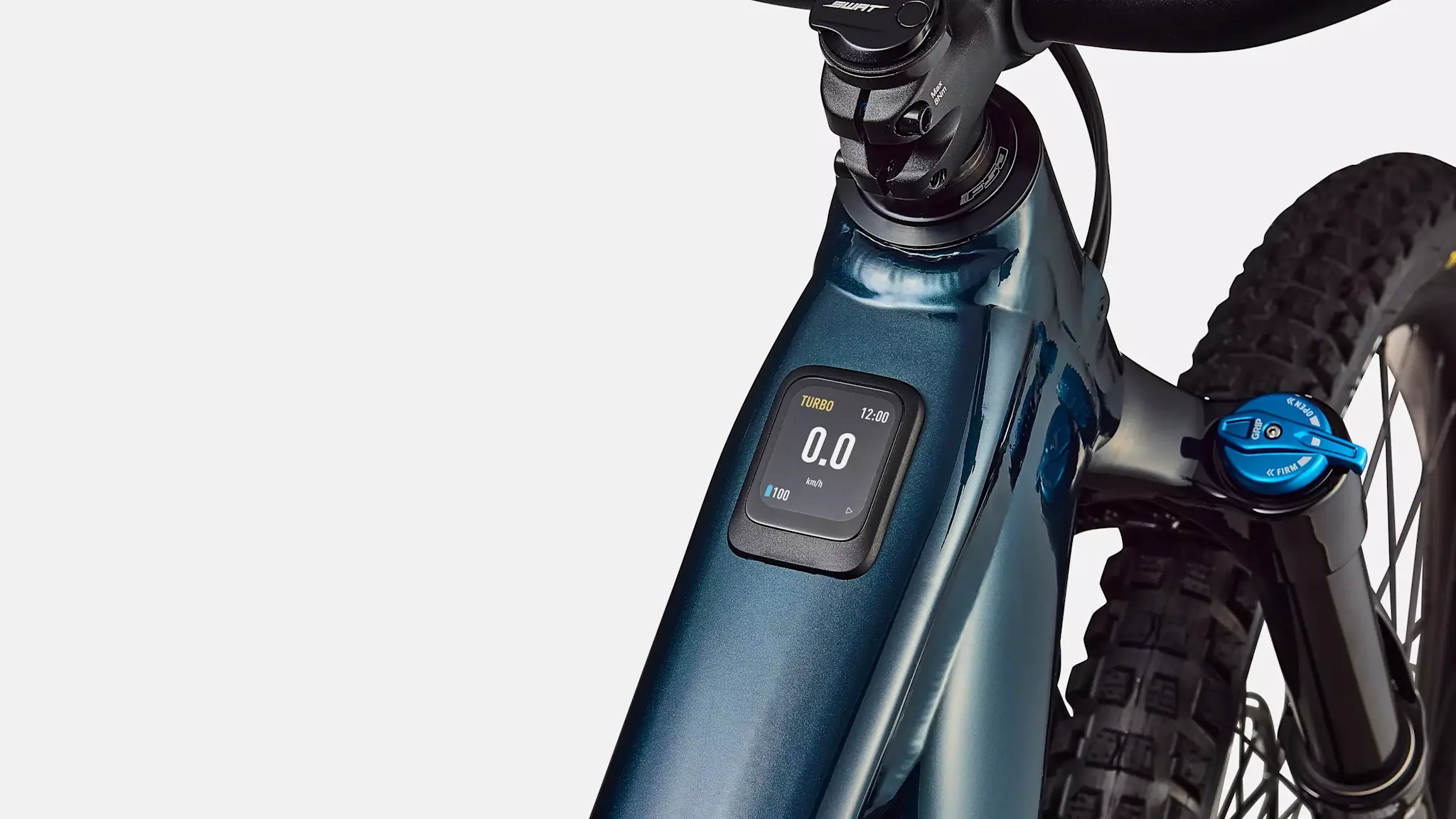

| Controller/Display |
All New MasterMind T3 Display System, 2.2" high resolution color screen, fully customizeable with Specialized app |
