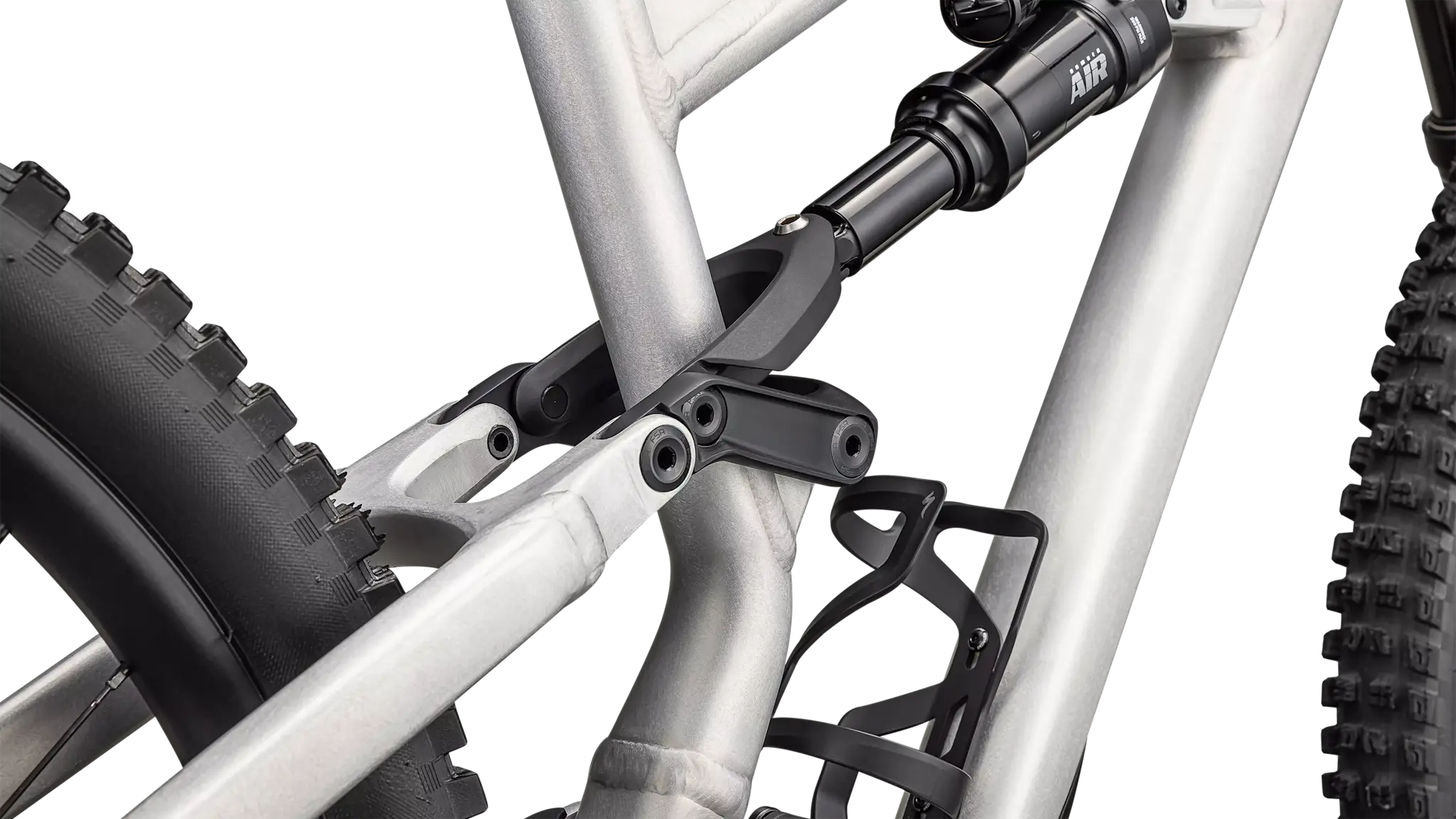

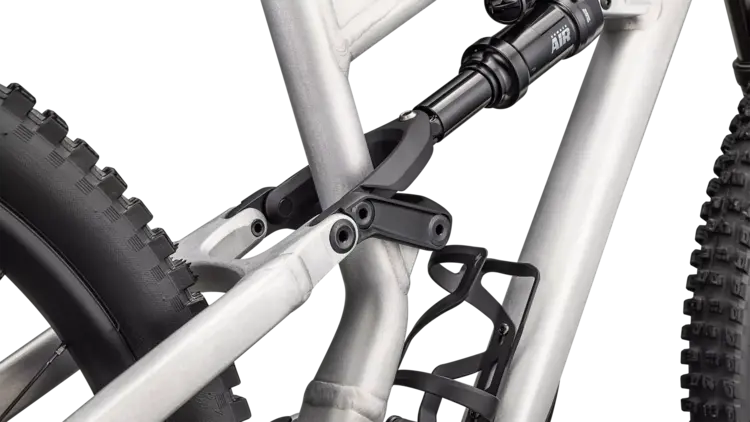

Frame |
M5 Alloy chassis and rear-end, Trail Geometry, horst pivot geo adjustment, threaded BB, internal cable routing with external rear brake option, 12x148mm dropouts, sealed cartridge bearing pivots, SRAM UDH compatible, 140mm of travel |
Fork |
Marzocchi Z1, GRIP damper, two position Sweep adjustment, 15x110mm Kabolt axle, 44mm offset, 140mm of travel |

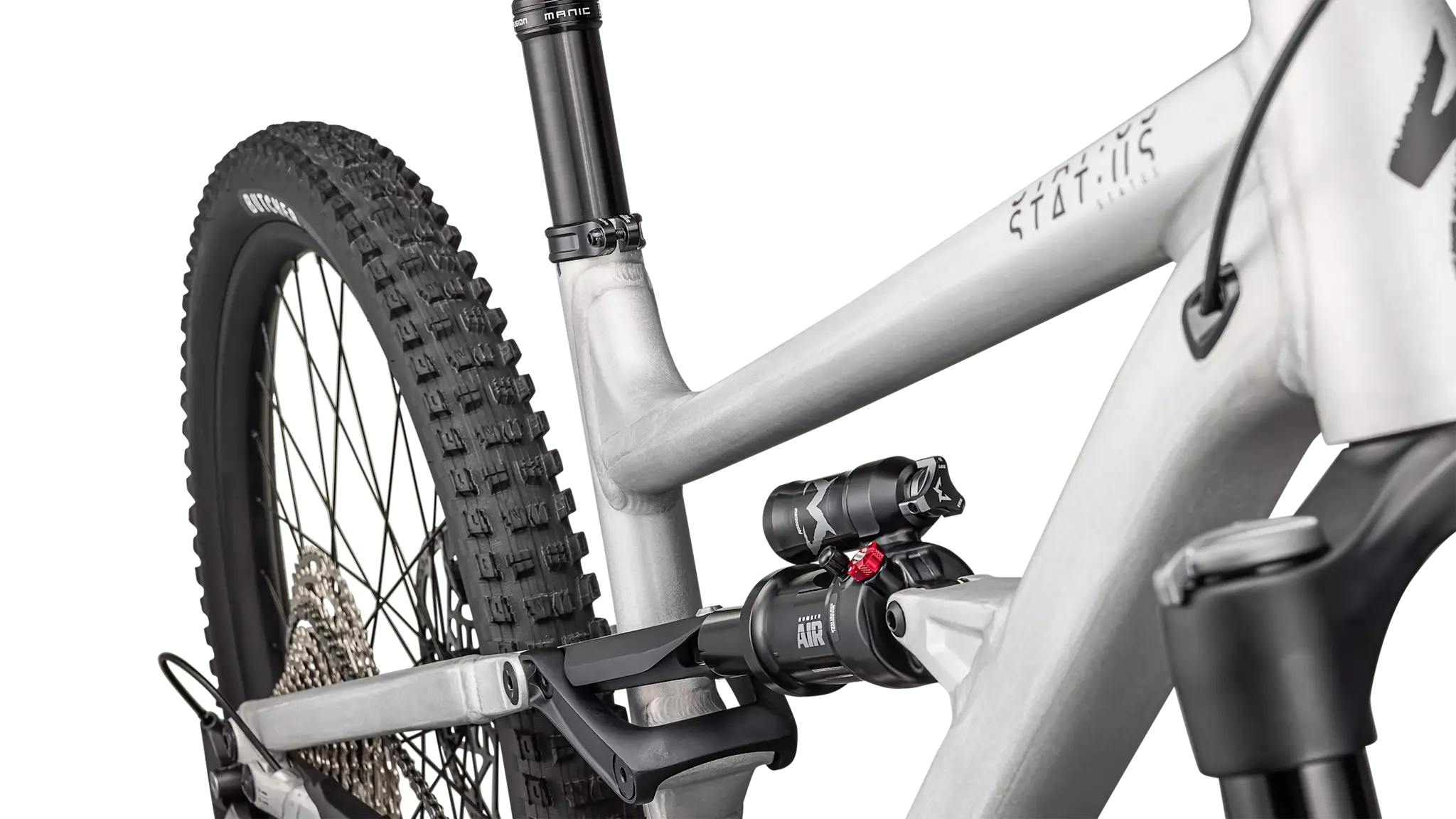

Rear Shock |
Marzocchi Bomber Air, Ride Dynamics Trail Tune, 2-position non-indexed compression sweep, w/ LSR adjustment, S1:210x50mm, S2-S5:210x52.5mm
|
Rims |
Specialized, hookless alloy, 30mm inner width, tubeless ready |
Hubs |
Front: Alloy, sealed cartridge bearings, 15x110mm thru-axle, 28h Rear: Alloy, sealed cartridge bearings, 12x148mm thru-axle, 32h |
Spokes |
DT Swiss Industry |
Tires |
Front: Butcher, GRID TRAIL casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.3" Rear: Butcher, GRID TRAIL casing, GRIPTON® T7 compound, 2Bliss Ready, 27.5x2.3" |
Crankset |
Shimano Deore M6100, 12spd w/Hyperglide+, 10-51t |
Shifters |
Shimano Deore, M6100, I-Spec EV, 12 speed |
Rear Derailleur |
Shimano Deore, M6100, 12pd, Shadow Plus
|
Cassette/Freewheel |
Shimano Deore M6100, 12spd w/Hyperglide+, 10-51t |
Chain |
Shimano Deore M6100, 12spd |
Brakes |
TRP Trail EVO, 4-piston caliper, hydraulic disc, 203mm |

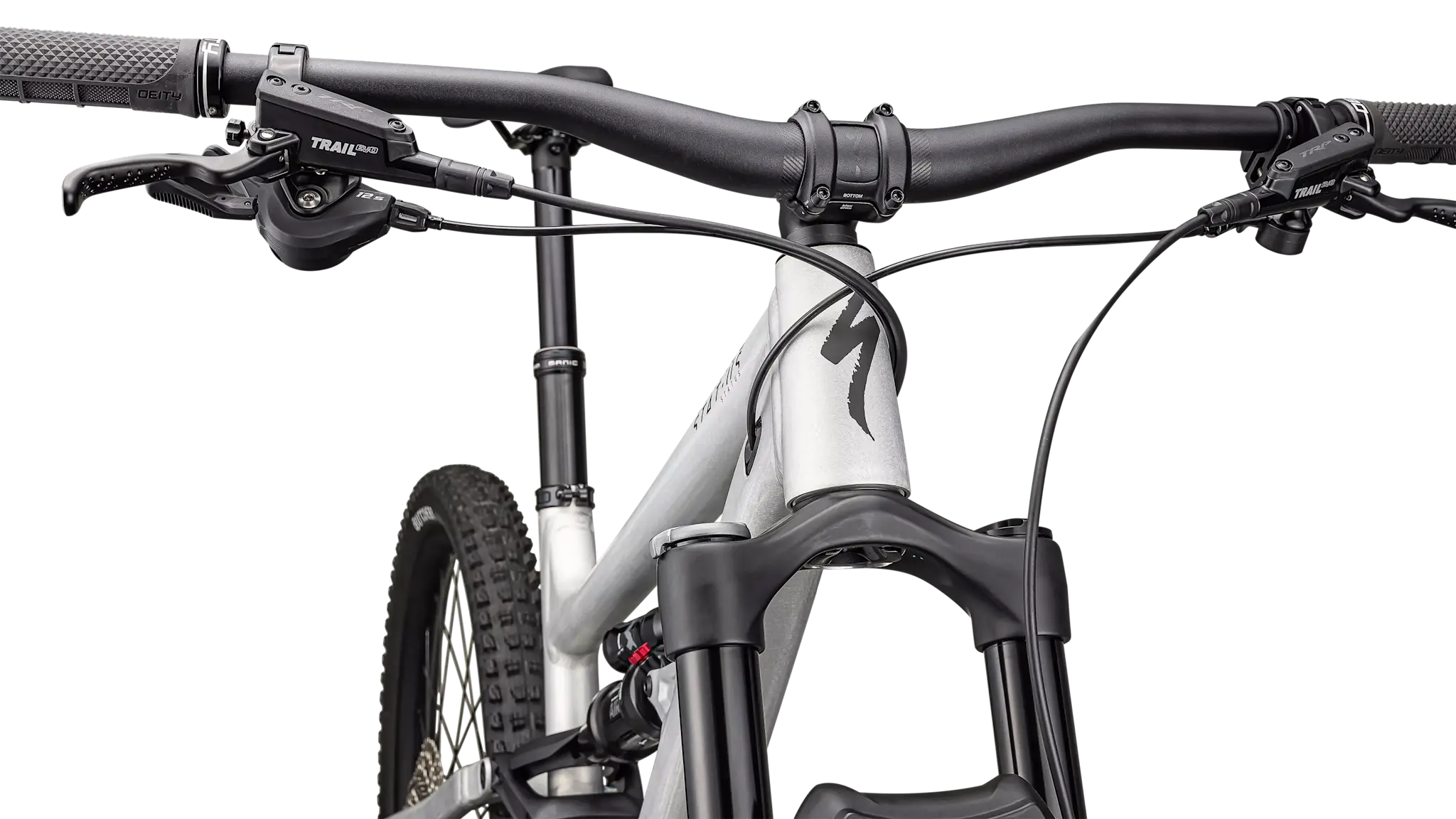

Handlebars |
Specialized, 6061 alloy, 6-degree upsweep, 8-degree backsweep, 30mm rise, S1: 780mm width, S2-S5: 800mm width |
Tape/Grips |
Deity Knuckleduster |
Stem |
Alloy Trail Stem, 35mm bar bore |
Seatpost |
X-Fusion Manic, infinite adjustable, two-bolt head, bottom mount cable routing, remote SLR LE lever, 34.9, S1: 125mm, S2: 150mm, S3-S4: 170mm, S5: 190mm |
Saddle |
Bridge Comp, Hollow Cr-mo rails, 143mm |
Pedals |
N/A |
